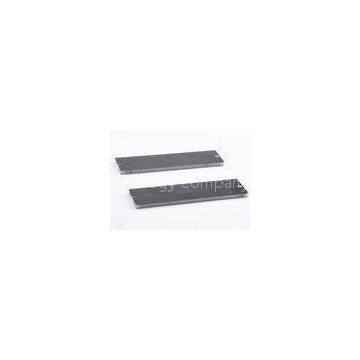

IT Equipment Rfid Tracking Tag, FR-4 base Material Rfid Tag (RCP8002)

RFID IT equipment Tracking tag(RCP8002)

Material: FR-4

Dimensions: 95×25×3.7mm

Protocol: EPC C1G2 (ISO18000-6C)

Frequency: 860～960MHz

Chip: ALIEN HIGGS 3 (optional)

Introduction:

This tag is designed on FR-4 base material. It solves the problem that tags can not be attached to metal surface(Reading distance even will be father when it is attached to metal surface). At the same time, it can work outside in the hard environment. It complaints with EPC C1G2 (ISO18000-6C), operating frequency is 860～960MHz (It can be used worldwide). Each tag has a unique ID and stores user data.

Physical Features:

Product Model: RCP8002

Material: FR-4

Dimensions: 95×25×3.7mm

Weight: 20g

Color: Black (optional)

Working Temperature: -40℃～150℃

RFID Features:

Protocol: EPC C1G2 (ISO18000-6C)

Frequency: 860～960MHz

Chip: ALIEN HIGGS 3 (optional)

EPC Memory: 96 bits, maximum 480 bits

User Memory: 512 bits

Read Range: Stationary reader: Over 5m (30dBm)

           Handheld reader: Over 2m (28dBm)

Other Features:

Environmental: ROHS compliant

Data storage: >10 years

Re-write: 100,000 times

Fixture: 3M adhesive or rivet

Customization: Company logo print

Application: Warehouse logistics management, IT asset management, inventory management, assets management, automotive component tracking, industrial manufacturing, etc.
