860 ～ 960MHz IT Equipment Tracking Tag, Rfid Tracking Tag (RCP8002) Specifications

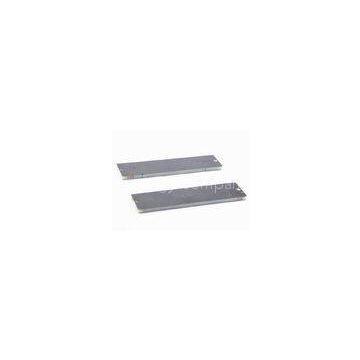

RFID IT equipment Tracking tag(RCP8002)
Material: FR-4
Dimensions: 95×25×3.7mm
Protocol: EPC C1G2 (ISO18000-6C)
Frequency: 860～960MHz
Chip: ALIEN HIGGS 3 (optional)
Introduction:
This tag is designed on FR-4 base material. It solves the problem that tags can not be attached to metal surface(Reading distance even will be father when it is attached to metal surface). At the same time, it can work outside in the hard environment. It complaints with EPC C1G2 (ISO18000-6C), operating frequency is 860～960MHz (It can be used worldwide). Each tag has a unique ID and stores user data.
Physical Features:
Product Model: RCP8002
Material: FR-4
Dimensions: 95×25×3.7mm
Weight: 20g
Color: Black (optional)
Working Temperature: -40℃～150℃
RFID Features:
Protocol: EPC C1G2 (ISO18000-6C)
Frequency: 860～960MHz
Chip: ALIEN HIGGS 3 (optional)
EPC Memory: 96 bits, maximum 480 bits
User Memory: 512 bits
Read Range: Stationary reader: Over 5m (30dBm)
Handheld reader: Over 2m (28dBm)
Other Features:
Environmental: ROHS compliant
Data storage: >10 years
Re-write: 100,000 times
Fixture: 3M adhesive or rivet
Customization: Company logo print
Application: Warehouse logistics management, IT asset management, inventory management, assets management, automotive component tracking, industrial manufacturing, etc.
