Home > Products > Furniture Testing Machines > Electronic Impact Testing Machine , Hardness Material Compression Foam Testing Equipment
Electronic Impact Testing Machine , Hardness Material Compression Foam Testing Equipment
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Foam Ball Rebound Tester With LCD Touch Screen , ASTM D3574 and ISO 8307 Standard
-
Compression Foam Testing Machine 200kg To Test Material Compressed Indentation Hardness
-
AC220V Furniture Testing Equipment For Single - Seat Sofa , EN4875 Standard
-
OEM Furniture Testing Machines , Cornell Mattress Spring Fatigue Tester HD-F763
-
Professional Electric Furniture Testing Machines ASTM F 1566 For Cornell Mattress
-
Integrate Furniture Testing Machines , Resilience Rebound Foam Testing Equipment
Product Details
| Brand Name | HAIDA | Place of Origin | China | |
| Model Number | HD-F750 |
Product Description
Certification:ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, SGS, SMC, CMC, CPA, CE,CMA,IMC
Electronic Impact Testing Machine , Hardness Material Compression Foam Testing Equipment
Specifications

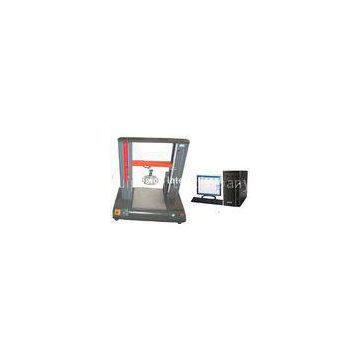

Compression Foam Testing Machine
1. Control and display by computer
2. Capacity: 200kg or Custom
3. 2 year guarantee
The usage
Compression Foam Testing Machine is used to test material compressed indentation hardness, such as sponge, foam and other porous elastic.
Principle:
Put specimen under pressure plate, the plate compress the specimen with a specify speed until the national standard require concavity, the load cell feedback the pressure to computer, it processing and display, then measure the indentation hardness of sponge, foam and other materials.
Technical parameters:
1. Control:computer control and display
2. Induction way: Precision load
3. Capacity:200kg
4. Unit:Kg,N,LB
5. Up plate: diameter 200mm,bottom fillet R1mm;Low plate:420×420mm,holes diameter 6mm,space 20mm
6. Max stroke:200mm
7.Test speed: 100±20mm/min
8. Motor:AC Inverter motor
9. Transmission:Precision screw
10. Machine size:( L×W×H) about 1220×750×1260mm
11. Configuration: One computer and operate software
12. Weight:about 200kg
