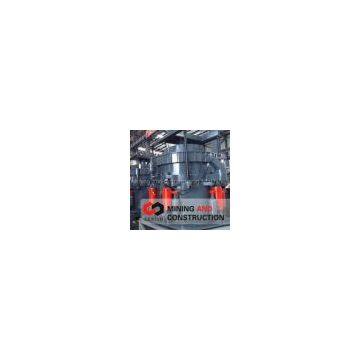

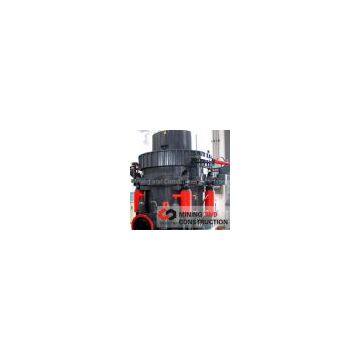

HP Series Cone Crusher (Hydraulic)
HP series Cone Crusher (Hydraulic) adopts computer optimization design to speed up main shaft speed. The unique crushing chamber replace system can quickly replace components in crushing chamber to meet different size requirement. The friction disc design and rotation of eccentric shaft bushing around fix cone plus more reasonable labyrinth seal system are unique features of HP series, which have more advantages like easier operation, larger application scope, more reliable, more smooth functioning comparing with spring and traditional cone crusher.
Features
HP Series Hydraulic pressure Cone Crusher has a better performance comparing with spring cone crusher and ordinary Hydraulic Pressure Cone Crusher:
1. High crushing ratio and production efficiency.
2. Less spare part consumption and low operation cost.
3. Better finished product shape.
4. Hydraulic protection and hydraulic clearing, high automatized and less production stop and repairing time.
5. Thin oil lubrication makes the service time increase.
6. Manifold crushing cavity. 7. Easy maintenance and operation. 8. The crusher can provide customers a higher capacity, better product shape, and easy to be operated.
Technical data
|
Model |
Movable Cone Diameter (mm) |
Chamber Style |
Min. Discharging (mm) |
Max. Feeding (mm) |
Capacity (t/h) |
Power (kw) |
Motor Model |
Machine Size (mm) |
|
HPC220 |
1220 |
Coarse |
19 |
210 |
185-300 |
220 |
Y2-355M1-4 |
2726×1950×2182 |
|
Fine |
13 |
105 |
150-210 |
|||||
|
HPC400 |
1570 |
Coarse |
30 |
290 |
400-500 |
400 |
Y3-4002-6 |
3447×2830×2977 |
