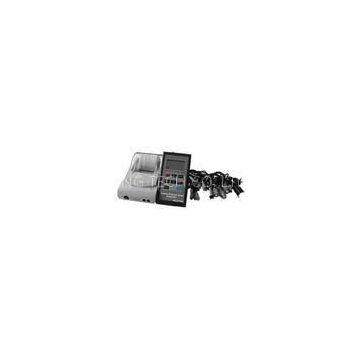

Coating Thickness Gauge TG8832FN,film thickness gauge,paint thickness gauge,elcometer

Measuring range

F400 :0~400μm N400:0~400μm  F1:0~1250μm  F1/90:0~1250μm

N1:0~1250μm F10:0~10000μm  CN02:10~200μm

Measuring accuracy

F400, N400      1 point calibration:±(2%+0.７)2 point calibration:±(1%+７)F1, F1/90, N1, CN02  1 point calibration:±(2%+1)2 point calibration:±(1%+1)F10           1 point calibration:±(2%+10)               2 point calibration:±(1%+10)

Calibration

1 point calibration /2 point calibration /basic calibration

Display resolution

0.1um (0~99.9um) / 1um (Over 100um)

Weight

250g(including battery package )

Operation environment

Temperature: 0℃~50℃ humidity: 20%RH～90%RH

Operation mode

Direct testing mode and block statistics mode

Measuring mode

continuous/single

Shutdown mode

manual/automatic

Operation alarm

Ring music to alarm mistake

Signal Dealing

Threshold

Limits setting and automatically alarm measured values out of limit

Data analysis

Analyzing a batch of measuring values via histogram

Statistic function

Mean/ Standard deviation / Number of measurements/ Maximum/ Minimum

Data Merory

Thickness values

500 measuring data

Delete

Single doubtful data / All data of one group

Input/Output

Print

measured values, statistic values, limit values and histogram

Communication

RS232/USB

Power supply

Battery

9V Nickel-hydride/alkaline batteri
