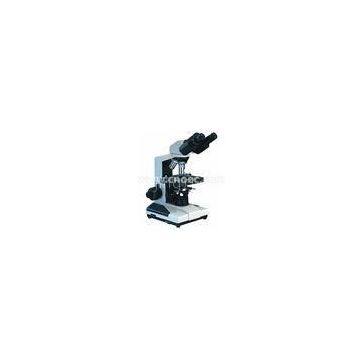

WF10X - 18mm Hobby Infinity Biological Microscope Binocular Head Microscopes A11.0209

WF10X - 18mm Hobby Infinity Biological Microscope Binocular Head Microscopes A11.0209 thumbnail-1
WF10X - 18mm Hobby Infinity Biological Microscope Binocular Head Microscopes A11.0209 photo-1
US$ $1 - $1 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
CNOEC, OPTO-EDU
Place of Origin:
China
Model Number:
A11.0209
Contact Supplier Request Quote Chat Now
Opto-Edu (Beijing) Co., Ltd,
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name CNOEC, OPTO-EDU
Place of Origin China
Model Number A11.0209
Delivery Time:5~20 Days
Certification:CE|Rohs

Hobby Infinity Biological Microscope Binocular Microscopes A11.0209

Description:

This microscope is the conveniently operated optical instruments with excellent functions and new patternit is very suitable for usage in medical test,teaching and microobservation in hospitals and schools.

--Infinity optical system available!
--Model difference:
A:Coaxial coarse/fine focusing system,
B:With bearing black plastic cap on the base
C:Coaxial coarse/fine focusing system with tension adjustable and up stop
--6V 20W halogen lamp with brightness control

Specifications:

Specification
A11.0209-A
A11.0209-B
A11.0209-C
Eyepiece
WF10X(Φ18mm)
Objective
Achromatic 4X/0.10
Achromatic 10X/0.25
Achromatic 40X/0.65(Spring)
Achromatic 100X/1.25(Spring, oil)
Head
Compensation binocular head inclination 30°;
Focus System
 Coaxial coarse/fine focus system, Minimum division of fine focusing: 2um
With tensional adjustable and up stop,
Base bearing black plastic cap
With tensional adjustable and up stop

Nosepiece
Quadruple backward ball bearing inner locating
Stage
Double layer mechanical, size 135x125mm, moving range 75x35mm
Condenser
Abbe N.A.1.25  Rack & pinion adjustment
Filter
Blue filter
Frosted filter
Collector
For halogen lamp
Light source
6V 20W halogen lamp with brightness control
Optional Accessories
 Item No.
Eyepiece Wide field WF16x/11mm A51.0203-16A
Divding 10x, 0.1mm/Div A51.0205-10
Objective
 Semi-plan achromatic SP4x/0.10 A52.0202-4
Semi-plan achromatic SP10x/0.25 A52.0202-10
Semi-plan achromatic SP20x/0.40 A52.0202-20
Semi-plan achromatic SP40x/0.65(Spring) A52.0202-40
Semi-plan achromatic SP100x/1.25(Spring, Oil) A52.0202-100
Head
 Monocular, inclination of 30° A53.0201-6
Binocular, inclination of 45° A53.0203-121
Trinocular, inclination of 45° A53.0204-21
Trinocular, inclination of 30°
