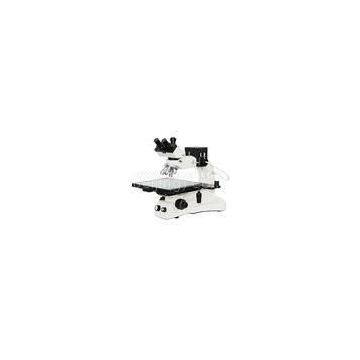

Big Working Stage Industry Trinocular Metallurgical Optical Microscope A13.1303
US$ $1 - $1
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
CNOEC, OPTO-EDU
Place of Origin:
China
Model Number:
A13.1303
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
-
Metallurgical Optical Microscope Infinity System Sliding Trinocular A13.1304US$ $1 - $1MOQ: 1 Piece -
A13.1301 Metallurgical Optical Microscope Inverted Trinocular Halogen LampUS$ $1 - $1MOQ: 1 Piece
-
Metallurgical Optical Microscope Big Base Industry Trinocular Inverted A13.1302US$ $1 - $1MOQ: 1 Set
-
Binocular Zoom Stereo Optical Microscope 0.7x - 4.5x No Light Source , A23.1304US$ $1 - $1MOQ: 1 Piece
-
Zoom Stereo Microscope 0.7x - 4.5x Pole Stand , Optical Microscope A23.1301US$ $1 - $1MOQ: 1 Piece
Brand Name
CNOEC, OPTO-EDU
Place of Origin
China
Model Number
A13.1303
Delivery Time:5~20 Days
Certification:CE, Rohs
Big Working Stage Industry Trinocular Metallurgical Optical Microscope A13.1303
Certification:CE, Rohs
Big Working Stage Industry Trinocular Metallurgical Optical Microscope A13.1303
A13.1303 Metallurgical Microscope, with high quality component design, simple and flexible combination and strong metallographic detecting function, it is the best choice for large size sample observation
--Compact and Flexible Structure, Adapting Various Surroundings
--Get Clear and Sharp Image Under Various Kind of Observations
--Optical Components Are All Specially Handled and Coated With Speical Film
--New Design of Long Working Distance Professional Metallurgical Objectives
| A13.1303 Metallurgical Microscope | |
| Head | Sliding Binocular Head, 45° Inclined,360°rotatable,with diopter adaptors on both eyepiece tubes |
| Eyepiece | Wide Field Plane-Scope:WF10X/18mm |
| Nosepiece | Quarduple Nosepiece |
| Objective | 45mm DINAchromatic 10x,100x(O,S) |
| Plan achromatic objective: PL20X, PL40X | |
| Working Stage | Double Layer Mechanical Stage, Size 400*270mm,Moving Range X-Y 254*254mm,with 1 piece of frosted glass; |
| Condenser | Abbe N.A.1.25, With Dia.2-Dia30mm Iris Diaphragm, |
| Focusing | Coaxial coarse and fine focusing adjustable mechanism,step-by-step variable gear,rack and pinion mechanism,with mechanism for adjusting focusing torque and controlling the upper limit of stage lift. Focusing Range: 36mm, precision: 0.002mm/scale; |
| Polarizer | With polarizer and analyzer.The polarizer can sliding out of optical path; |
| Filters | Five stop and aperture stop,Blue, green filters; |
| Light Source | Vertical illumination system for reflected illumination,12V/50W halogen lamp,light adjustable continuously,bottom light system with extra light LED for transmitted light,light adjustable continuously; |
| Gross Weight | 19KG |
| Package | 1set/carton |
| Dimension | 56*53*40cm |
