Home > Instruments & Meters > Meter for Electricity > Resistance Meter > A13.1301 Metallurgical Optical Microscope Inverted Trinocular Halogen Lamp

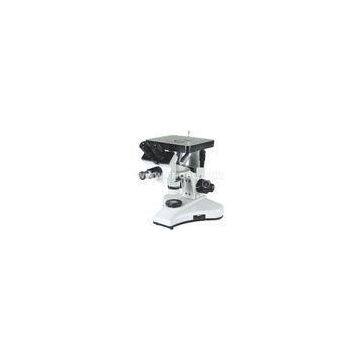

A13.1301 Metallurgical Optical Microscope Inverted Trinocular Halogen Lamp

Name: A13.1301 Metallurgical Optical Microscope Inverted Trinocular Halogen Lamp
Brand: CNOEC, OPTO-EDU
SKU: 149316206
Availability: InStock

A13.1301 Metallurgical Optical Microscope Inverted Trinocular Halogen Lamp thumbnail-1

A13.1301 Metallurgical Optical Microscope Inverted Trinocular Halogen Lamp photo-1

US$ $1 - $1 MOQ: 1 Piece

Key Specifications

Get Latest Price

Brand Name:

CNOEC, OPTO-EDU

Place of Origin:

China

Model Number:

A13.1301

Contact Supplier Request Quote Chat Now

Opto-Edu (Beijing) Co., Ltd,

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

7 days

Product Details
Company Profile
Contact Us

Brand Name CNOEC, OPTO-EDU

Place of Origin China

Model Number A13.1301

Delivery Time:5~20 Days
Certification:CE, Rohs
A13.1301 Metallurgical Optical Microscope Inverted Trinocular Halogen Lamp

A13.1301 Metallurgical Microscope, with high quality component design, simple and flexible combination and strong metallographic detecting function, it is the best choice for large size sample observation

--Compact and Flexible Structure, Adapting Various Surroundings
--Get Clear and Sharp Image Under Various Kind of Observations
--Optical Components Are All Specially Handled and Coated With Speical Film
--New Design of Long Working Distance Professional Metallurgical Objectives

A13.1301 Metallurgical Microscope	M	B	T
Head	Monocular Head, 45° Inclined,	o
Binocular Head, 45° Inclined, Interpupillary Distance 55~75mm		o
Trinocular Head, 45° Inclined,Interpupillary Distance 50~75mm			o
Eyepiece	Wide Field Plane-Scope Eyepiece:WF10X
Wide Field Plane-Scope Eyepiece with 0.1mm Cross Micrometer:WF10X
Nosepiece	Backward, Quarduple Nosepiece
Objective	45mm DINAchromatic 10x,100x(O,S)
Metallurgical Plan-scope Achromatic Objective:40X(S)
Working Stage	Double Layer Mechanical Stage, Size200180mm, with Two Plates(Ø10 and Ø20mm) ,Moving Range X-Y 7050mm
Condenser	Abbe N.A.1.25, With Dia.2-Dia30mm Iris Diaphragm,
Focusing	Coaxial Coarse And Fine Focusing Adjustable Mechanism by Rack and Pinion with Tension Adjustment and Stage Height Limited Knob;Focusing Range:25mm；Precision:0.002mm
Light Source	Built-in Adjustable Brightness Halogen Lamp 6V/20W and Kohlar Illumination System with Blue,Green,Yellow and Ground Glass Filters
Gross Weight	10.5KG
Package	1set/carton
Dimension	423552cm
