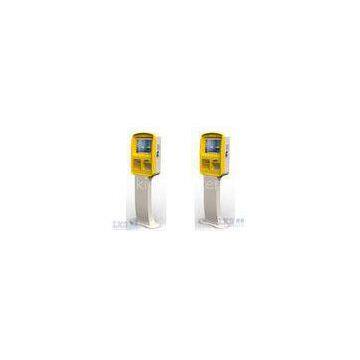

Indoor Touch Screen Bill Payment Kiosk Terminal With Card Reader For Self Payment

Delivery Time:4-6weeks upon payment
Certification:CE, FCC


Indoor Touch Screen Bill Payment Kiosk Terminal With Card Reader For Self Payment


Main functions :

Type: self-service kiosk, Bill Payment Kiosk, Card Dispenser kioskApplication: Outdoor / IndoorLogo:LKS or Upon clientsWarranty: 1 yearTouch Screen: IR/SAW/CapacitiveMaterial Feature:Anti-dust, Anti-vandalKiosk Color: upon the customer’s requestDisplay:TFT,LCD, AUO or othersSupported OS : Linux or windows 7 or windows 8optional size of screen: 17inch, 19inch or upon customers’ requestMaterial of Cabinet:1.5mm to 2.5mm Cold-roll sheet or othersParts: Cash acceptor/Coin acceptor / NFC Card reader / receipter printer….Power supply: 110-120V, 220V-240V or optional



Description:

LKS is a professional Bill Payment Kiosk manufacturers and payment kiosk supplier in China. It provides the bill payment kiosk with advertising screen brings a unique look to the different self-service kiosk applications and kiosk industry.LKS bill payment kiosk is manufactured by 1.5mm-2.5mm thickness cold-roll steel sheets which ensure the stability and rigidity of all structure.LKS bill payment kiosk is developed specifically for payment use in bank, hospital, convenient store, subway, railway station, metro station, parking Lot, theatre, shopping mall, etc.LKS main bill payment kiosk are including bill pay kiosk, pop up kiosk, touch screen self payment kiosk, touch screen bill payment terminal kiosk, self service payment kiosk, payment terminal kiosk, atm kiosk, swipe card reader kiosk, self payment terminal kiosk, wall mounted payment kiosk, free standing payment kiosk, prepaid kiosk, pin pad payment kiosk, subway kiosk; kiosk terminal; financial kiosk, etc.



Applications:

BanksHotelHospitalTheatreRailway StationMetro StationParking LotShopping Mall



Bill Payment Kiosk / Card Reader Self Payment Kiosk Terminal With Card Reader are including touch screen self payment kiosk, touch screen bill payment kiosk, self service payment kiosk, payment terminal atm kiosk, swipe card reader kiosk, self payment terminal kiosk, wall mounted payment kiosk, free standing payment kiosk, prepaid kiosk , pinpad payment kiosk,etc.


Standard hardware components List of Bill Payment Kiosk / Card Reader Self Payment Kiosk Terminal With Card Reader is as following:

Components	Details
PC system	Industrial Board	Seavo/ Gigabyte/Advantech AIMB 562
CPU	Dual core E5700/G2020, 2.8ghz; Intel Dual Core I3/I5/I7
RAM	2GB /4 GB / 8GB
HDD	500G
Interface	6 RS-232 Ports;1 LTP;6 USB Ports,1 10/100M Net Port ;Integrated Net Card, Sound Card
PC Power Supply	HUNTKEY/Great Wall
LCD monitor	Screen Size	17 inch/19inch ( optional from 8inch to 65inch)
Brightness	250cd/m2
angle	horizontal 100°above;Vertical 80°above
Contrast	1000:1
Backlight tube life	more than 40,000hours
Max. resolution	1280×1024
Touch screen	Screen Size	17/19 inch Diagonal ( optional from 8inch to 65inch)
Resolution	4096x4096
High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times
Bank/Credit Card Reader	Interface	RS232
Card Type	Support Magcard, IC Card, RF Card, Mifare S50,S70,UL Card
Power Voltage	DC 24V±5%
Card Entry method	Magnetic signal, Optoelectronic signal and rear card signal
Encrypted Pinpad	Keylift~span	2,000,000 cycles
Key force	2~3N
Key trip	>2.5mm
Protection level	ip65
Cashcode Bill acceptor	Validation Rate	96% or higher
Banknote Insertion	Four-way
Escrow	One banknote
Capacity	1000 notes Max
Coin Acceptor	Coin Acceptance	Max 32 coin types, in 2*16 or 1*32 channels
Detection ability of counterfeit Coins	with high detection ability of counterfeit coins
Accepting Speed	2 Coins/Sec
Supply Voltage	10V-16V DC
Epson receipt thermal printer	Autocutter	included
Technology	Thermal printing
Paper w
