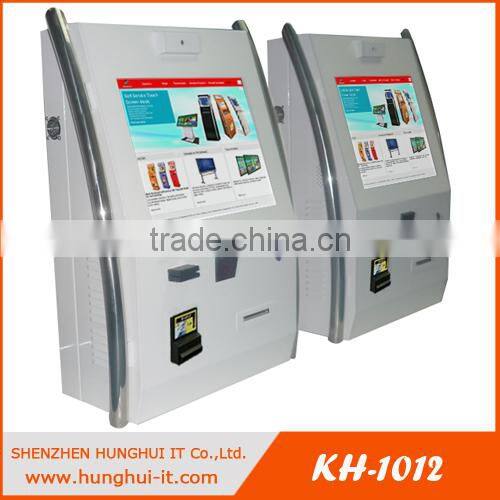

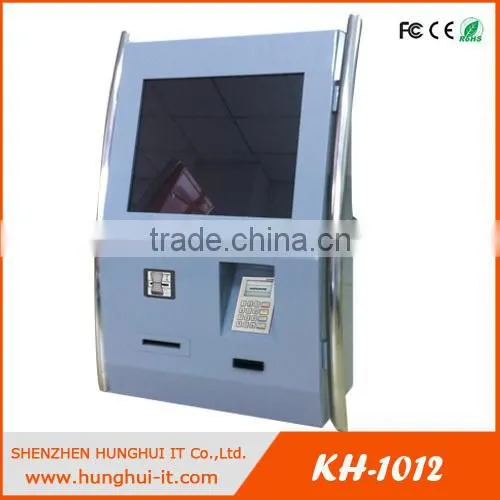

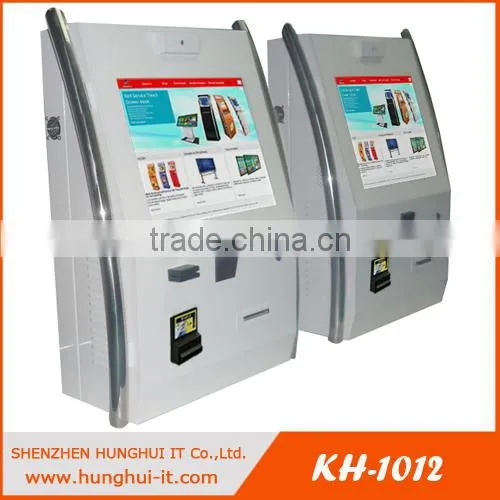

Unattended Ticket Vending Machine With Card Reader

Unattended Ticket Vending Machine With Card Reader photo-1
Unattended Ticket Vending Machine With Card Reader photo-2
Unattended Ticket Vending Machine With Card Reader photo-3
US$ 883 - 2,500 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
Hunghui or OEM
Model Number:
KH-1012
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin China
Brand Name Hunghui or OEM
Model Number KH-1012

Unattended Ticket Vending Machine with Card Reader



Quick Information

~Robust 1.5mm-2.0mm cold-rolled cabinet

~Easy service access through back

~Ideal for payment application (cashless)

~Easily customizable appearance

Product Description



Basic Configuration



Central PC

(Customizable)

Motherboard

H61/B75
CPU Dual core G2030, Main frequency: 3.0 GHz, Interface type: LGA 1155. Optional:  i3/i5/i7
RAM DDRIII 4G / 8G
HDD 500G, 7200rpm, 3.5" S-ATA
Inter face RS-232 Ports; LTP; USB Ports, 10/100M Net Port; Integrated Net Card, Sound Card

Monitor

Screen size 15", 17", 19" 22", etc.
Brightness 300cd/m2
Contrast 800:1
Response time 5ms
Dot pitch 0.264mm
Best resolution  1280x1024





Touch Screen

Screen size 15", 17", 19" 22", 26", etc.
Touch type SAW, Infrared, Capacitive
Resolution 4096x4096
Feature High transparence, precision and durability







Kiosk Enclosure

Material Cold-rolled steel ST12 SPCC with 1.5mm~2.0mm thickness.
Surface finishing Car painting technology. Steel cabinet sprayed metallic paint, Anti-rust, Anti-acid, Anti-dust.
Color and Logo Customizable
Features

Easy service access through front or back door.

Accessories Speakers Stereo loudspeaker, 8Ω 10W
Fans Internal ventilation system
Power Supply  Input voltage 100~240V/AC
Frequency 50Hz to 60Hz
Operation System  Windows 2000 / Windows XP /  Windows 7 / Vista / Windows 8 / Linux / Android
Package Safe packing with bubble foam, carton box or plywood case
Safety     Anti-vandal safety;
Electric safety: compliant with GB4943 Standard;
EMC(Electro Magnetic Compatibility): Compliant with GB9254 and GB/T17626 Standard
Monitoring system: Digital video security monitoring system (optional)

Data safety: EPP is compliant with VISA Security Standard, PCI compliant (optional) ;

Card reader is compliant with EMV Level1 Standard;







Additional Functions Depending on Your Requirements

Printer

Thermal printer

58mm/76mm/80mm/112mm paper width

RS-232 / USB interface

Card Reader

Magnetic Card Reader

Magnetic card (Tr 1/2/3) compliant with ISO and compatibility standard

Chip Card Reader

Chip card reader, Compliant with EMV standard, IC card reading and writing

RFID Card Reader

Contact / Contactless card reader, Mifare Type A & B

Keyboard

3DES Metal EPP; 16 keys, waterproof, dustproof, vandal proof IP65

64bits metal keyboard with trackball / touchpad

Bar Code Scanner

1D barcode scanner (Honeywell /Barcode Hand Scanner...etc), single-line scanner, multi-line barcode scanner

QR / 2D code scanner(Honeywell brand)

Other Peripherals

wifi/GPRS/Webcamera/3G/



 Kiosk Application

Public places: Bus, Sub Way, Airport, Gas Station, Book store, Exihibition Hall, Park,

Stadium, Museum, Convention Center, Ticket agency

Business Organization:Supermarket, large-scale shopping mall, chain shops,

star-rated hotels, restaurant, travel agency, Pharmacy

Financial Organization: Banks, negotiable securities, funds, insurance company, Pawnshop

Non-profit Organization: Telecommunications, post office, hospital, school

Entertainments: Movie theaters, fitness halls, country clubs, massage room, bars, cafe,

internet bar, beauty shop, golf course

Unattended Ticket Vending Machine with Card ReaderUnattended Ticket Vending Machine with Card ReaderUnattended Ticket Vending Machine with Card Reader

Unattended Ticket Vending Machine with Card Reader

Packaging & Shipping

Shipping

Sample 3-7 days to the World by air or DHL/Fedex etc express

bulk order to the world by sea or air upon the country

Unattended Ticket Vending Machine with Card Reader





Our Services

Warranty & Service

1. The standard warranty time is 12 months free warranty. Warranty period can be prolonged by 2 parties agreement.

2. We guarantee that each unit is tested carefully and works very well before shipment. We strive for 100% customer satisfaction on every sale we complete.

3. During the warranty period, we can repair or replace the defective unit for free; After the warranty time, we will repair the defective unit and charge part cost.

4. When you receive the package, please open and check it before signing, if the product is damaged, ask a "Damage proof" from the delivery company.

5. Any question, please contact us by email or Trade Manager, emails will be responsed within 12 working hoursAlso you can contact us by skype hunghui-rita directly.
