Product Details
| Brand Name | INMIND | Place of Origin | China | |
| Model Number | Long Flute type 1mm to 20mm |
Product Description
Certification:SGS Factory Certificater

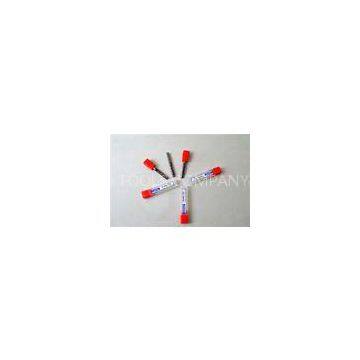

HRC55 Long reach Titanium End Mill Carbide Square Milling Cutting Tools , Long Flute Type
Quick Detail:
0.5-0.6um Ultra-Fine grain size solid carbide rod
TIALN Coating (Black),TiSiAlN(Copper)
Made by 5 AXIS CNC grinder
Checked by Zoller Inspection Equipment
Workpiece upto HRC55
1 piece packing.
Long Flute Type
Description:
Ultra-Fine Grain Szie 0.5-0.6um, Wc carbide rod with high tenacity,with high quality TiAlN coating,getting
long tool life,from roughing to finishing processing,reduce time of changing cutters,improving efficency
of machine,saving time of making moulds.Suggest to process iron and steel upto HRC55,Middle-High speed.
Carbide Rod:Wc:88%,Co:12%,TRS:4000N/mm2, Grain Size:0.5-0.6um
Applications:
Fit for milling quenching and tempered steel.stainless steel.nickel alloy and Titanium alloy,Cast iron,
enhanced composited material with fiberglass,Also fit for milling copper.
Specifications:
|
Order No |
Cutting |
Flute Length |
Shank |
A.O.L |
|
d |
l |
D |
L |
|
|
3×15×3D×75L×4F |
3 |
15 |
3 |
75 |
|
4×20×4D×75L×4F |
4 |
20 |
4 |
75 |
|
5×25×5D×75L×4F |
5 |
25 |
5 |
75 |
|
5×25×6D×75L×4F |
5 |
25 |
6 |
75 |
|
6×25×6D×75L×4F |
6 |
25 |
6 |
75 |
|
8×30×8D×75L×4F |
8 |
30 |
8 |
75 |
|
3×15×3D×100L×4F |
3 |
15 |
3 |
100 |
|
4×20×4D×100L×4F |
4 |
20 |
4 |
100 |
|
5×25×5D×100L×4F |
5 |
25 |
5 |
100 |
|
6×30×6D×100L×4F |
6 |
30 |
6 |
100 |
|
8×35×8D×100L×4F |
8 |
35 |
8 |
100 |
|
10×45×10D×100L×4F |
10 |
45 |
10 |
100 |
|
12×50×12D×100L×4F |
12 |
50 |
12 |
100 |
|
6×35×6D×150L×4F |
6 |
35 |
6 |
150 |
|
8×40×8D×150L×4F |
8 |
40 |
8 |
150 |
|
10×50×10D×150L×4F |
10 |
50 |
10 |
150 |
|
12×55×12D×150L×4F |
12 |
55 |
12 |
150 |
|
14×60×14D×150L×4F |
14 |
60 |
14 |
