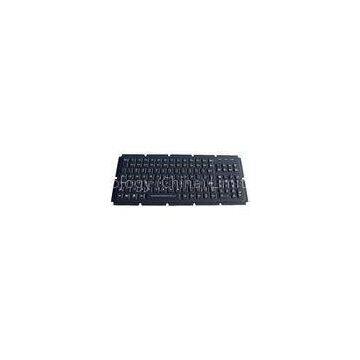

IP65 dynamic rated ruggedized rubber silicone industrial backlight pc keyboard with numeric keys and

Delivery Time:ASAP Within 2 weeks upon payment confirmed
Certification:CE,FCC,ROHS,IP65,IP68,ESD

Quick Detail:
1. IP65 rated ruggedized industrial silicone rubber keyboard
2. Integrated numeric keypad, 24 function keys.
3. Industrial Backlight optional
Description:
1.IP65 rated ruggedized industrial silicone rubber keyboard with full keyboard functionalities
2.With 119 keys, integrated numeric keypad, 24 function keys and carbon-on-gold key switch technology with stroke 1.50mm
3.with durable coating & antimicrobial keyboard surface withstand to most chemicals and liquids under harsh environment
4.Clean key for easy cleaning, adjustable industrial backlight optional,top panel mounting.
Special Features:
1.keyboard with NVIS-compliant red adjustable backlighting optional, while NVIS backlighting makes this keyboard ideal for
aviation or vehicle applications where night vision goggles are necessary.
2. Keyboard provides full-size versatility in a rugged, compact design, rugged construction for reliable functionality
3. The keyboard lacks the crevices found between the keys of a regular keyboard, which is protected against dust, dirt, grease
and corrosive liquids to NEMA 4X, which means it can withstand directed hose water, disinfectants, environmental
contaminants and heavy industrial use.
4. Special durable-coating for excellent mechanical and chemical resistance
5. Clean key
----Prevents data from being sent while the keyboard is wiped down, allowing user to clean at any interval with minimal
downtime
---User is notified of ‘lock down mode’ by brightly lit CLEAN KEY
6. With firm tactile key feel, key travel 1.5mm key travel.
7. Integrated numeric keypad.
8. Ease of customizing with multiple languages, to accommodate foreign or custom variants.
9.PS/2, USB connection cables that plug directly into computer like keyboard operations.
10. Enclosure: industrial silicone, Aluminum back plate optional.
Applications:
This keyboard is ideal for use in environments ranging from manufacturing to material handling to medical settings. Its numeric
pad allows for easy data entry.
A: MEDICAL: lab, hospital, clinic, dental, such as carts, diagnostic equipments, operation rooms, dialysis centers etc;
B: MATERIAL HANDLING: mobile keyboard, data entry, assembly line etc
C: MILITARY: Army, Navy, Air force
D: INDUSTRIAL: Industrial automation, pharmaceutical, oil and gas, food and beverage, clean or dirty manufacturing
environments, warehouses
E: OTHER INDUSTRIES
Specification

MECHANICAL DATA
Key	119 keys
Key top style	Protuberant rectangular keys with tactile feeling.
Key Size	12.0mm X 13.0mm for normal keys, 22.5mm x 13.0mm for enter key 82.0mm x 12.5mm for space bar key.
Key travel	1.5mm
Switch life	more than 10 million of operations
G.W.	1.60KGs
Dimensions:	376.0mm x 170.0mm (L x W)

ELECTRICAL DATA
Supply Voltage	+5V DC 5%
Current Rating	20mA (non-backlight), 140mA (with backlight on)
EMC Standard:	It is compliance with the council IEC 61000-4-2:2008；IEC 61000-4-3:2006+AI:2007+A2:2010；IEC 61000-4-4:2004
EMI:	EN 50081-1
Immunity:	EN 50082-1
Lifespan	> 3 years
Switch Contact Material:	Carbon-on-Gold key switch technology with gold PCB.
Interface:	PS2, USB available.
OS:	All windows, Linux, Unix, Mac OSX

ENVIRONMENTAL ADAPTABILITY
Operating temperature	-20oC to +60oC(industrial level);-40oC to +85oC(military level)
Storage temperature	-30oC to +70oC(industrial level);-55oC to +150oC(military level)
Humidity	100%
Atmospheric pressure	60-106Kpa
Shock	3x11 ms pulses of 50g on each of 3 axes
Vibration	POWER SPECTRAL DENSITY: 0.04g/Hz, FREQUENCY RANGE: 20Hz - 2kHz, DURATION OF TEST PER AXIS: 3 hours Flammability
Printed Circuit Board	94 VOSILICONE OVERLAY: 94 HBINTERFACE CABLE: 94 V
