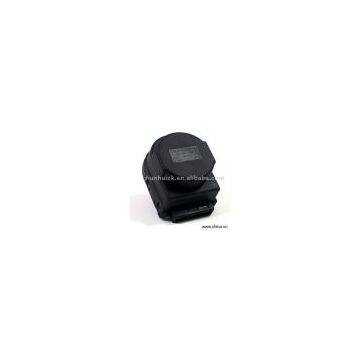

Sell Motor

Model No.:
Product Origin:China
Brand Name:CHUNHUI
Price Terms:FOB Shanghai or Ningbo
Payment Terms:T/T or L/C at sight
Certification:CE, UL, CQC
Description:Product Name: MotorPlace of Origin: ChinaSpecifications: 1) Nominal voltage: AC 220V, 50Hz 2) The voltage fluctuation allowed: -15% ~ +10% of the nominal voltage 3) Insulation resistance: above 500mΩ measured by DC 500V megohmmeter 4) Electric strength: the current leakage is below 10mAh under 1,800V, 50Hz for 1 min 5) Idle power: 2.5 ± 0.1W under the nominal voltage 6) Max. stroke: 7.5mm 7) On / off time: a) Forward direction: 3.8s on, 0.2s off b) Reverse direction: 5.8s on, 0.2s off 8) Contact area of the feeler: more than 2/3 of the feeler area 9) Max. thrust: more than 55N 10) Usage life: more than 200,000 11) Ambient environment: a) Ambient temperature: -25 - 70°C b) Relative humidity: less than 95% c) Without combustible or corrosive gas in the air, no electric dust 12) This motor is for the reversing control of the boiler Outer packing: 100pcs/carton
