Double Head CNC Sharpening Machines For Spiral Bevel Gear , Oerlikon Control System

Double Head CNC Sharpening Machines For Spiral Bevel Gear , Oerlikon Control System

Application:

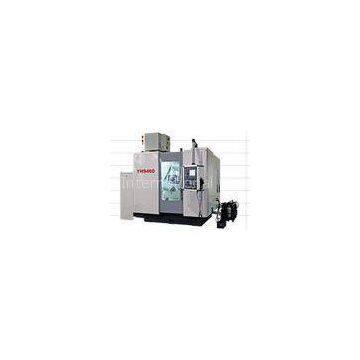

The model YH9460 CNC Spiral Bevel Gear cutter Sharpener is designed for sharpening the milling cutter and broach cutter which used for cutting the spiral bevel gear. The machine adopts the CBN grinding wheels and suitable for spiral bevel gear and sharpening the cutting faces of the tools in the tool factories.

Characteristics:

●  The machine adopts double measuring head to testing cutter tooth and grinding wheel position, the operation is accurate and simple.

●  The machine uses CBN grinding wheel with high-precision and smooth finish.

●  The machine can grind GLEASON cutter and OERLIKON system EN cutter.

●  The machine is controlled by five-axis which adopts SIEMENS servo motor, the grind with high-efficient and stability.

●  The machine adopts German Renishaw high-precision measuring device. Don\'t try to grinding, just put the cutter to install on the machine can automatically grinding, grinding quantities can control, save the adjustment time, improve the grinding accuracy.

●  The diameter of grinding cutter is 6”~24”; it can meet many factories requirements.

●  The machine adopts CNC rotary table in Taiwan bran. It only change the fixture of cutter so that can achieved exchange of GLEASON and OERLIKON EN cutter, the operation is easy.

Parameter table:

Company Profile:

Heng Yong company gathered many experienced experts. This team is lead by people have over decades of experience, and filled with young, energetic engineers.  With strong research and developing ability, our company put extraordinary effort on developing complete sets of gear machinery.  Now we are able to provide our customer the main products as follows: Gear Shapers, Straight Bevel Gear Generators, Spiral Bevel Gear Generators, Spiral Bevel Gear Grinders, Hypoid Gear Testers, Gear Lappers, Gear Quenching Press, Gear Chamfering Machines, Gear Hobbers, Honing Machines, Vertical & Horizontal Machining Centers, Special Precision Speed Reducers, Roll Stander for Seamless Tube Stretch Reducing Mill, Gear Coupling Family, Low Drive Devices and Environmental Protective Equipment of 16 kinds, more than 30 families, and more than 150 types and specifications. The company focus on developing heavy-duty, large CNC gear machinery, which are urgently needed by the government and makes industrialize as soon as possible, provide
