CNC Cylindrical Gear Shaving Machine For Wind Power Gears Wiht Servo Motor

CNC Cylindrical Gear Shaving Machine For Wind Power Gears Wiht Servo Motor

Description:

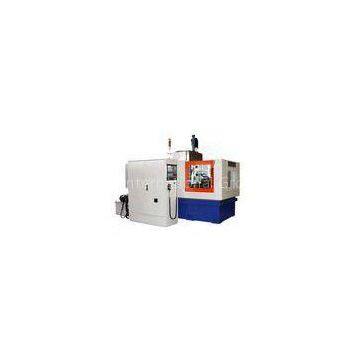

The Model YH4180 CNC Gear Shaving Machine is mainly used for machining φ200 ~ 800mm internal and
external cylindrical gears. The machine is easy to operate, it has automatic cycle, and production efficiency is high. It is suitable for motorcycle, tractor,heavy machine, wind power generation and so on.
The machine is vertical layout with four axes CNC control system. The servo motor driven ball screw so that
drives column to realize column\'s horizontal travel; servo motor driven ball screw so that drives slide to realize cutter support’s vertical travel; servo motor driven worm gear pair so that drives cutter rotation to realize adjust travel of cutter helix angle. The worktable’s rotation adopts torque motor to driving; worktable’s rotation holder adopts rotary table bearing. The movement is stable, processing is high accuracy.

Parameter table:

Company Profile:

Heng Yong company gathered many experienced experts. This team is lead by people have over decades of experience, and filled with young, energetic engineers.  With strong research and developing ability, our company put extraordinary effort on developing complete sets of gear machinery.  Now we are able to provide our customer the main products as follows: Gear Shapers, Straight Bevel Gear Generators, Spiral Bevel Gear Generators, Spiral Bevel Gear Grinders, Hypoid Gear Testers, Gear Lappers, Gear Quenching Press, Gear Chamfering Machines, Gear Hobbers, Honing Machines, Vertical & Horizontal Machining Centers, Special Precision Speed Reducers, Roll Stander for Seamless Tube Stretch Reducing Mill, Gear Coupling Family, Low Drive Devices and Environmental Protective Equipment of 16 kinds, more than 30 families, and more than 150 types and specifications. The company focus on developing heavy-duty, large CNC gear machinery, which are urgently needed by the government and makes industrialize as soon as possible, provide a great variety of advanced gear machinery to the market. The company is using the leading 3D designing software for developing and designing. The company combines producing with research and development by Cooperating with TIANJIN University and other colleges for many years.
