Certification:CE, RoHS, UL, FCC, ISO
Quick Detail:
1. High brightness: more than 6000cd/㎡
2. Lightweight :< 12.5KG/panel. Ultra thin: 100mm thickness
3. Waterproof Level: IP65(Front Side), IP54 (Back Side)
4. CE,CCC,RoHS,UL,ISO9001
5. Long lifespan> 100,000 hours
6. Cabinet connection angle can be adjusted by -15 degree to +15 degree

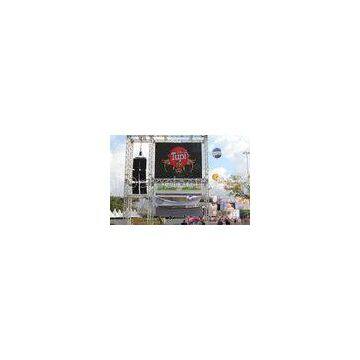

1R1G1B P15 Stage LED Display Rental , Outdoor Lightweight
Description:
1. High brightness & Waterproof
Brightness reaches 6000nits, Waterproof IP65. It is good for indoor and outdoor use.
2. Light Weigh & Ultra Thin
Made by high quality aluminum material, one cabinet only weights 12.5 KG. It makes installation job and
delivery more comfortable and convenient. 100 mm thickness saves not only space for delivery but also
installation.
3. Angle Adjustment
Cabinet connection angle can be adjusted by -15 degree to +15 degree. This allows arc shape available.
4. Fast Lock System & No Fan Design
Fast lock system makes installation job much easier: an average worker can finish 60 panels within one
hour. Natural cool system design and good heat dissipation.
5. Rental & Fixed Installation Use
With above features, it is very suitable for advertising and rental usage.
Applications:
Rental, Advertising, Stage, Events, Show, Exhibition, Entertainment, Concerts
Specifications:
1. WS12 Technical Parameter
|
Model No. |
WS12 |
|
Pixel Pitch |
12.5mm |
|
Module Size |
500mm*100mm |
|
Module Resolution (W*H) |
40 dots*8 dots |
|
Pixel Density |
6400 dots/ ㎡ |
|
LED Type |
SMD 3535 |
|
Pixel Configuration |
1R1G1B |
|
Wavelength (R.G.B) |
R:625±2nm G:525±2nm B:470±2nm |
|
Drive Mode |
Dynamic 1/6 Duty Constant Current |
|
Cabinet Size |
500×1000×100mm |
|
Cabinet Resolution |
40dots×80dots |
|
Brightness |
≥6000cd/㎡ |
|
Contrast |
≥2000:1 |
|
Viewing Angle |
140°(Horizontal )/140°(Vertical ) |
|
Best Viewing Distance |
7m-300m |
|
Grey Scale |
10bits/1024levels |
|
Color Capability |
16777216 |
|
Color Temperature |
5000-9300K |
|
Maximum Power Consumption |
1200W/m2 |
|
Average Power Consumption |
600 W/m2 |
|
Working Voltage |
AC 220V/110V s±15% 50-60 HZ |
|
Frame Frequency |
60-85 HZ |
|
Refresh Frequency |
240 - 1000HZ |
|
Brightness Correction |
Pixel, Module, Cabinet Correction |
|
Operating Temperature |
-40~+65℃ |
|
Operating Humidity |
10-90% RH |
|
LED Lifespan |
100,000 hours |
|
MTBF |
≥50,000 hours |
