Waterproof 10mm OPTO / SILAN Outdoor Advertising LED Display 7500 nits For Building Facade
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
- MBRB20200CT (Schottky Barrier Rectifiers) MBRB20200CT
- MBR0520L SingleDiode (Electronic Components) MBR0520L
- 1N5822US Microchip Technology Schottky Diodes & Rectifiers Schottky
- 1N4004W-T Rectron Rectifiers SOD-123,1A,400V,GP
- RHRP30120 onsemi / Fairchild Rectifiers 30A 1200V
- 1N5817 Diotec Semiconductor Schottky Diodes & Rectifiers Schottky, DO-15, 20V, 1A
Product Details
Brand Name: | Dreamway | Place of Origin: | China | Model Number: | P10 |
Product Description
Certification:CE,ROHS
Outdoor Advertising LED Display 10mm OPTO/SILAN LED with 7500 nits
Quick Detail:
1. 960×960 mm cabinet dimension;
2. 6×6PCS LED module;
3. 96×96 dots per cabinet pixel;
4. Synchronous control with PC;
5. More than 800Hz refresh rate;
6. CE standard power supply.
Detail Description:
IP65 waterproof steel cabinet, making the display work even in rainy day;
Multifunction card could adjust brightness automatically and transmit sound.
Application:

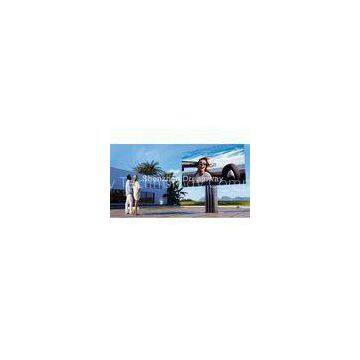

It is used for outdoor advertising, generally installed outside shopping mall, commercial plaze, on park, building, etc.
Specifications:
Pixel Pitch |
10mm |
LED Composition |
1R1G1B |
LED Type |
DIP346 |
Pixel |
10,000 dots/sq.m |
Module Pixel |
W 16 × H 16 |
Module Size |
W 160 × H 160 mm |
Standard Cabinet Dimension |
W 960 × H 960 mm |
Cabinet Color |
Black |
Cabinet Material |
Steel waterproof cabinet |
Drive Method |
1/4 scan constant current |
Brightness |
≥7500 CD/sq.m |
Refresh Rate |
≥800Hz |
Out of Control Dot Rate |
<0.0001 |
Earth Leakage Current |
<2mA |
MTBF |
>5,000 hours |
LED Life Span |
>100,000 hours |
Power Supply |
110V/60HZ and 220V/50HZ interchangeable |
Humidity |
10%~90% |
Control Method |
Synchronous control with PC on |
Operation System |
Win2000 / XP / Vista |
