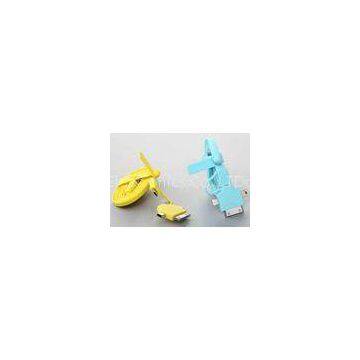

Noodle Flat 4-in-1 Micro IPhone USB Charger Cable / Universal Micro USB Cable
Quick Detail:
|
Name |
4 in 1 charge &sync usb cable |
Brand Name |
ABS-C20 |
|
Color |
white,black,yellow, green,blue.Pink |
Feature |
USB AM to iphone4s+iphone5+mini+micro usb , TPE Materieal, With DATA+Charge Func, in each port |
|
Place of origin |
Guang dong china (mainland) |
Certificate |
CE,RoHS, FCC |
Production Introductions:
With apple 30 pin ,apple 8 pin ,Mini,Micro connectors,it is compatible with iphone,ipod,blackberry
and most mobile phones using Micro usb jack.
Production Description:
1, Sync data or charging
Can be through the Dock direct or indirect.
Connect to the iphone 5/4 s/ipod/ipod Touch/Summung etc to computer USB port, in order to achieve
efficient sync data transmission and the charging function.
2, 100% brand new & high quality
3, Wide-body wire, not knot, convenient use
4, Many colors, more fashion, more personality
Wire rod Description:
1, No.of cond:4 Conductors
2,Conductor 1
a, Material: Enameled Copper Wire 1 UEW
b, Construction: 0.06mm/18 strands
c, Fillers: Nylon Silk White 250D
3,Conductor 2
a, Material: Enameled Copper Wire 1 UEW
b, Construction: 0.06mm/30 strands
c, Fillers: Nylon Silk White 250D
4,Jacket
a, Material: NON Migration TPE Dull Surface
b, Diameter:2.0*5.5mm
c, Way of Extrusion :Solid
|
Construction |
||
|
ITEM |
DESCRIPTION |
|
|
No.of Cond |
4 Conductors |
|
|
Conductor(1) |
Material/Color |
Enameled Copper Wire 1 UEW / According to the picture ( 1 , 4 ) |
|
Construction |
0.06 mm / 18 strands |
|
|
Fillers |
Nylon Silk White 250D |
|
|
Conductor(2) |
Material/Color |
Enameled Copper Wire 1 UEW / According to the picture ( 2 , 3 ) |
|
Construction |
0.06 mm / 30 strands |
|
|
Fillers |
Nylon Silk White 250D |
|
|
Jacket |
Material/Color |
NON Migration TPE Pass ROHS/Green Dull Surface |
|
Diameter |
2.0 * 5.5mm |
|
|
Way of Extrusion |
Solid |
|
DESCRIPTION:［(0.06/18+250D)*2C+(0.06/30+250D)*2C］*1F |
|
|
TITLE: 2.0 * 5.5 4C TPE |
|
|
NO |
Conductor |
|
1 |
Blue |
|
2 |
Nature |
|
3 |
Red |
|
4 |
Green |
Characterisitcs:
1, Conductor Resistance:Resistance shall not exceed 0.6 ohms/m
2, Withsand Voltage test: No Breaking (250 VAC/1min,between two wires)
3, Insulation Resistance:Shall not less than 10 Mohms·m(250 VAC/1min,between two wires)
4, NON Migration Test: N0 Trace (500g;60℃;ABS;48H)
| ITEM | Condition | SPEC |
| Conductor Resistance | ￣ |
Resistance shall not exceed 0.6 ohms/m |
| Withstand Voltage Test | 250 VAC / 1 min , between two wires | No Breakin |
