40 Tons Fit-up Tank Roller Beds Wind Tower Production Line With CE , ISO
- 0 Set / Sets per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
20 Ton Conventional Speed Adjustable Welding Rotary Positioner Remote Control
-
Variable Speed L Type Special Rotary Welding Positioners Turning Table 2 Tons
-
Portable CNC Plasma Cutting Machine Automatic Height Controller 6000mm
-
Gantry CNC Plasma Cutting Machine For Cast Iron With Auto Height Regulator
-
Automatic Ignition Portable CNC Flame Cutting Machine For Stainless Steel 180W
-
Gantry CNC Flame Aluminum Cutting Machine Cutter Equipment 80 - 1000mm/min
Product Details
| Brand Name | Pyramid | Place of Origin | China | |
| Model Number | HGZ-series |
Product Description
Certification:CE,ISO,TUV

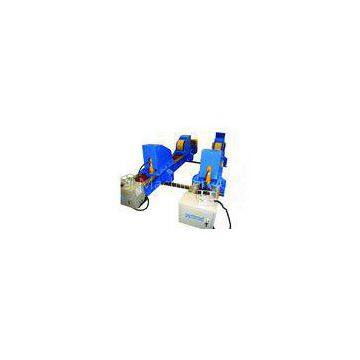

40 Tons Fit-up Tank Roller Beds Wind Tower Production Line With CE , ISO
Quick Detail:
|
Name |
Products nickname |
Brand Name |
Control |
|
Fit-up Rotator/System |
Tank roller beds,vessel rotator,tank turning rolls Fit-up turning rolls |
Pyramid |
VFD. ABB inverter. Schneider |
|
Loading Capacity |
40tons-60tons |
Certificate |
CE,ISO |
Description:
Fit-up roller has four independent fit-up rolls that perform lift up process, supported by hydraulic cylinders, which connects to hydraulic pump station. Combined with standard conventional power and idler roller, it can realize section to section assembly.
Applications:
Fit-up roller is mainly used in assembly of section to section pipe,such as in wind tower, or in vessel,tank application.
Specifications:
Technical datas:
|
Model |
Loading |
Suit dia |
Wheel size |
Power |
Rail dis |
|
HGKF-40 |
40 tons |
2-4.8m |
400X120mm |
3KW |
1200mm |
|
HGKF-60 |
60 tons |
2.5-5m |
520X250mm |
4.5KW |
1800mm |
Competitive Advantage:
Fit-up roller beds provide the unique features for the need of cone tank and vessel and wind tower industries.
Fit up principle ( instructions):
One section + one section fit up:
Can “A” travels distance of 600~1800 mm via travel car bogie. Power roller is driven by AC inverter to control the
turning of Can “A” to match the offset line of the Can ”B”.
Can “B” travels distance of 250mm stroke via hydraulic cylinder, movement of the Can “A to Can
B” for gap alignment. Vertical stroke is 150mm via 4 hydraulic cylinders for high & low position.
Overall load capacity is at 40 tons and above is also available.
