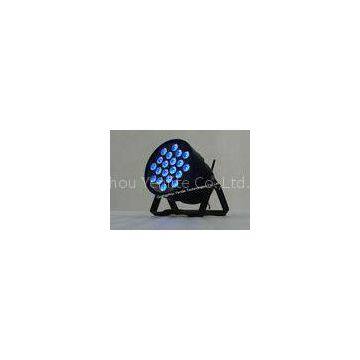

Portable Wireless LED Stage Light , DMX LED Par Can For Outdoor Wedding

Delivery Time:1-14 Days
Certification:CE, RoHS

 Portable Wireless LED Stage Light , DMX LED Par Can For Outdoor Wedding

Quick Detail:

20 LED 3IN1 6W

 DMX512, Master/Slave, Auto Run,Sound Activated,2.4GHz Wireless DMX Optional

CE, RoHS

Specifications:

Model Name:	20 LED 3IN1 6W  Wireless DMX LED Par Light
Model No.:	YL-PAR-20-6TC-M1
Working Voltage:	100-240V AC 50-60Hz
Light Source:	20 LED 3IN1 6W
Max. Power:	120W
Beam Angle:	25 or 40 degree
DMX Channels:	3 or 5 Channels
Control mode:	DMX512, Master/Slave, Auto Run,Sound Activated,  2.4GHz Wireless DMX Optional
Certification	CE, RoHS
Dimensions:	19.5cm X 19.5cm X21cm
Net Weight::	2.5Kg

Description:

Full color dimming: 255 grade brightness tunning, sound activation

Full color Jumping change: Red, Green, Blue and White color jumping in turns, 255 grade speed control, sound activation

15 color jumping change: 255 grade speed control, sound activation

Multicolor graduating change: 255 grade speed control, sound activation

Multicolor strobe: 7 colors strobe in turns, 255 grade speed control, sound activation.

Auto Run, Built-in programme circulation

Master/Slave: Multiple units linked, slave changes with master synchronizingly.

DMX dimming: Different units are assigned their own DMX address, their outputs are changing with the data of the DMX controller.

Operation Panel:

1- Working Mode Switch  2- LCD Cursor Moving Key, Flashing Position is the parameter to be revised  3- Data Up  4- Data Down  5- LCD Display  6- Wireless DMX Indicator

7- DMX Signal Indicator  8- Sound Activation Indicator  9- DMX Socket  10- Antenna

Function Setup

Built-in Function Setup

Press SETUP key to switch among all sub-function key, speed, sound button, etc. Cursor flashing position is the parameter to be revised. Press UP or DOWN to adjust the data. It can be master unit.

For example: LCD displays\"4.FADE S010 A:N\"

4.FADE: NO.4 function, Fade

S010: Speed value 10

A:N: Sound Activation closed

AUTO RUN

Auto Run the combination function of all sub-functions, it can be the master unit,

set the Sound Activation parameter to be \"N\" to close the Sound Activation Mode

of the sub-function.

DMX Address Setup:

Address Range: 1-512, Press UP to setup address upward and DOWN to setup address downward. There are two DMX channels for your choices:

DMX 3CH & DMX 5CH:

DMX 3CH Mode:

CH1:0-255 Red Dimming Range

CH2:0-255 Green Dimming Range

CH3:0-255 Blue Dimming Range

DMX 5CH Mode:

CH1:0-255 Red Dimming Range

CH2:0-255 Green Dimming Range

CH3:0-255 Blue Dimming Range

CH4:R, G, B, W, A, U General Dimming

CH5:Strobe Speed

Slave Mode

Choose Slave Mode, Synchronizing with Master Unit.

Wireless ID Setup

Press SETUP, UP OR DOWN at present mode to display current ID, press again to setup new ID, ID value will be added 1 more by pressing one time, ID indicator color will change according one by one.

Working Status:

LED constant light: Showing current ID, no DMX or wireless signal RED LED flash: Transmitting Green LED flash: Receiving

ID code and LED color corresponding relationship:

1:RED 2:GREEN 3:RED+GRE---------------Yellow 4:BLUE 5:RED+BLU------------------Purple 6:GREEN+BLU--------------Cyan 7:RED+GREED+BLU------White

Description for LED Indicators:

RF-ID: Tricolor LED to indicate working status and ID code.

SOUND: So
