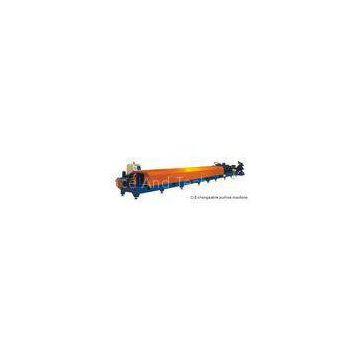

C / Z Quick Interchangeable Roll Forming Machine With Passive / Hydraulic Uncoiler
US$ 48 - 58000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
YTSING
Place of Origin:
China
Model Number:
YD-0233
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
-
15Kw C / Z Quick Interchangeable Purlin Roll Forming Machine With Hydraulic Pre-cuttingNegotiableMOQ: 1 Set -
20 Stations and 75-300 Hydraulic C / Z Quick Interchangeable Purlin Roll Forming MachineNegotiableMOQ: 1 Square Meter
-
Hydraul Automatic Z Purlin Roll Forming Machine , Roof Panel Roll Forming MachineNegotiableMOQ: 1 Piece
-
Hydraulic C Purlin Roll Forming Machine With 17 - 23 StationsNegotiableMOQ: 1 Piece
-
C- Purlin Roll Forming Machine With K Span Equipment/1.5-3.5mmUS$ 30000 - 50000MOQ: 1 Piece
Brand Name
YTSING
Place of Origin
China
Model Number
YD-0233
Delivery Time:Within 60-80days after receiving 30% down payment
Certification:CE
Certification:CE
C / Z Quick Interchangeable Roll Forming Machine with Passive / Hydraulic Uncoiler
| Specification | |
| Number of Stations | 20 sets |
| Thickness | 1.5-3.0mm |
| Main Power | 13.5KW |
| Shipment Packing | one 40FT container |
| Forming Speed | 15-18 mtr./min(Not include shear) |
| Machine Frame | H-BEAM Frame |
| Technical Data | |
| Productivity | C&Z channel as the drawing |
| Man Power Required | One operator with one assinstant |
| Set Up time | 15 mins |
| Working Hours per Day | 8 to 16 |
| Line Direction | Left to right while facing operator panel |
| Overall Machine Length Required | 12.6m |
| Approximate Machine Height | 1.5M |
| Complete Line Consist Of |
| Passive decoiler |
| Feeding&Leveling applicator |
| Roll forming |
| Hydraulic punching |
| Hydraulic shear |
| Output table |
We can also design rolling C-Z Purlin machine according to your specific profile drawing.
Layouts:
