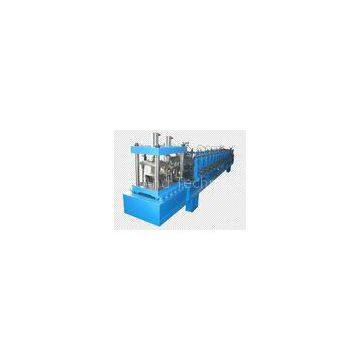

Hydraulic C Purlin Roll Forming Machine With 17 - 23 Stations
Specifications
Passed AAA certification
More professional and with high quality
Passed CE 9001:2000
C Purlin Roll Forming Machine
| Number of stations | 17-23 sets |
| Thickness | 1.5-3.0mm |
| Main power | 15KW |
| Shipment packing | one 40FT container |
| Forming speed | 18-30mtr./min(Not include shear) |
| Complete Line Consist Of |
| Passive/Hydraulic Single /Double Uncoiler |
| Infeeding applicator |
| Roll forming machine unit |
| Hydraulic press |
| Hydraulic automatic cutting unit |
| Output table |
Technical Data
| Productivity | Products as the drawing |
| Man power required | One operator with one assistant |
| Set up time | 15 mins |
| Working hours per day | 8 to 16 |
| Line direction | Left to right while facing operator panel |
| Approximate machine height | 1.5M |
We can also design rolling C-Purlin machine according to your specific profile drawing.
Drawing:
|
Size C |
A |
B |
E |
|
100 |
100 |
50 |
15 |
|
150 |
150 |
65 |
18 |
|
200 |
200 |
75 |
20 |
|
250 |
250 |
75 |
20 |
|
300 |
300 |
85 |
25 |
|
350 |
350 |
100 |
25 |
|
400 |
400 |
100 |
Layouts:
Wuxi Yuanding Science And Technology Co.,Ltd is a professional exportation-oriented company which specialized in designing, manufacturing,sales and services in the field of cold roll forming machines, we can supply the stud-track forming machines,c/z purlin forming machines,roof &wall forming machines,expressway guardrail forming machines, metal deck forming machines ,steel tile forming machines ,PU sandwich panel production line as well as slitting lines and cut-to-length machines lines and so on.
Located in Wuxi city,Jiangsu province which is close to Shanghai international airport ,we enojoy convenient transportation and advantageous location with which supply good business opportunities for the investors home and abroad.
\"Copra\" software made in Germany is a kind of professional software for designing the cold roll forming machines.In the past years,we devoted ourselves to studying,training and putting into production.Through continous efforts made by our staffs,we already improved a lot on the machines quality and won good repution in the worldwide. We are ready to establish the business relations with the overseas and domestic customers
