Help CenterStainless Steel Vee Wire Wound Water Treatment/intake Screen
Related Products
-
Stainless Steel Johnson Vee Wire Welded Water Well ScreenUS$ 1 - 1MOQ: 10 Meters -
Mini Slot SS Wire Welded Water Intake Screen Pipe CylinderUS$ 1 - 1MOQ: 10 Meters
-
Johnson Wedge Wire Welded Pipe Pipe Cylinder for Water Treatment FiltrationUS$ 1 - 1MOQ: 10 Meters
-
Stainless Steel Mini Slot Johnson Wire Wound Pure Round Filter ElementUS$ 1 - 1MOQ: 10 Meters
-
Johnson Wedge Wire Wound Water Treatment FilterUS$ 1 - 1MOQ: 10 Meters

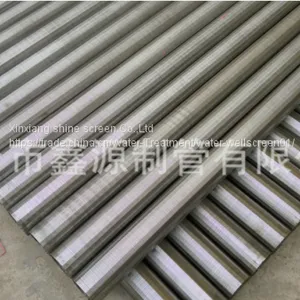

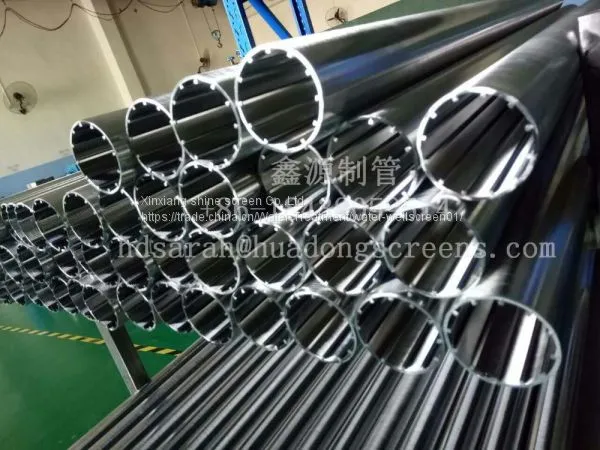

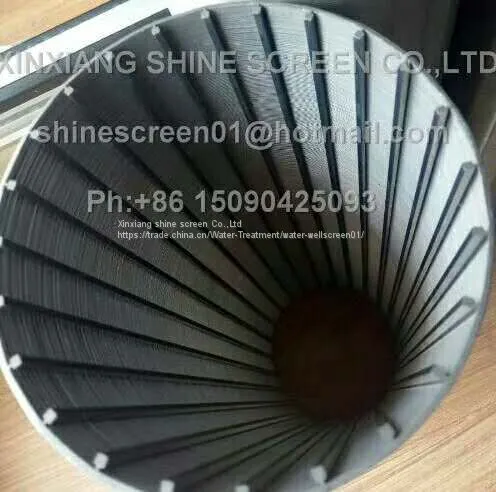

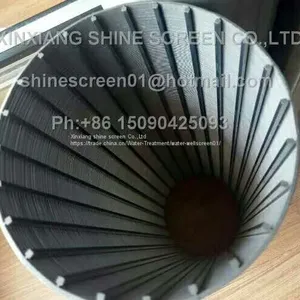

Stainless steel vee wire wound water treatment/intake screen
1.Construction Drawing of the Stainless steel vee wire wound water treatment/intake screen
If the slot tubes are used as a carrier for another filter medium for example textile. The surface profile can be:
1. reversed triangular
2. round
3. diamond shaped
In case of round wire the support tubes can be welded with 1, 2 or 3 wires next to each other.
2.Advantages of the Stainless steel vee wire wound water treatment/intake screen
Compared with conventional support elements ( such as perforated tubes, wire mesh, ....) , support elements have following advantages:
1. a smaller contact between the support tube and the filter media there is more active filter area, which creates a larger active filter media and a smaller pressure drop. Thorough cleaning by back flushing possible.
2. a strong mechanical construction
3. large open area
4. easy to clean (back flushing)
3. Standard constructions of Stainless steel vee wire wound water treatment/intake screen (special geometries on request)
The construction of a support tube is described as follows:
surface wire / support wire x number of support wires.
Example: 0,8/2 x 18
This means that the profile wire is Ø 0.8. The support wire is Ø 2 and there are 18 support wires, equally spaced over 360°.
4.Standard constructions of Stainless steel vee wire wound water treatment/intake screen
Surface profiles |
Support profiles |
Number of support profiles |
Support tube diameter in mm |
Ø 0.8 |
Ø 2 |
6 |
14 |
Ø 0.8 |
Ø 2 |
6 |
20 |
Ø 0.8 |
Ø 2 |
18 |
24 |
Ø 0.8 |
Ø 2 |
6 |
28 |
R 11S |
Q20 |
6 |
29 |
Ø 0.8 |
Ø 2 |
24 |
45 |
R 11S |
Q25 |
10 |
45 |
R 18S |
18S |
12 |
57 |
