PowerWizard FG Wilson Control Panel

PowerWizard
Remote Monitoring Options

Remote Monitoring

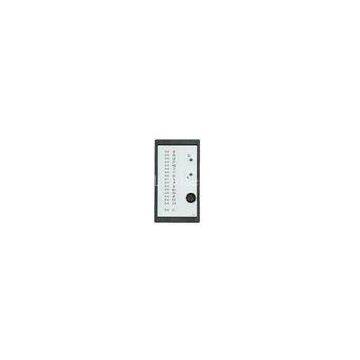

The PowerWizard Annunciator is a 16-channnel display unit for remotely monitoring the status of FG Wilson generator sets at a distance of up to 240 metres. The Annunciator communicates via the CAN 2 data link which comes as standard on generator sets fitted with PowerWizard 2.0 or 2.1 Control Panels. Each of the 16 channels on the Annunciator has two LEDs to display status and alarm signals directly from the PowerWizard 2.0 or 2.1 Control Panel on the generator set.

The pre-set channels linked to each LED display can be individually configured using the Electronic Service Tool (EST). This allows Operators to monitor different generator set status and alarm signals to suit site-specific requirements.

In addition to the LED display, the Annunciator includes an audible alarm, an alarm acknowledge pushbutton and a lamp test pushbutton.

PowerWizard
Remote Monitoring and Control Options

Remote Monitoring and Control

The FG Wilson Communications Interface Module and Software Package allows operators to monitor and control all generator set functions from a virtual control panel on their PC.

Depending on the operator’s distance from the generator set and the type of connection available to link to the generator set, two options are offered:

For distances up to 1,000 metres, where it is convenient to have a hard-wired connection, a generator set can be monitored using the Communications InterfaceModule and Software Package on the operator’s PC or laptop.

Alternatively, when laying a hard-wired connection is not convenient, the same monitoring and control functionality is available, but communication between the operator’s PC or laptop and the Control Panel is made through a modem and the telephone network. Depending on theoperator’s distance from the generator

set and the type of connection available to link to the generator set, two options are offered:

* Modem to link the operator’s PC or laptop with the telephone network is not included.

Additional remote monitoring and control options, via the internet, GSM and GPRS are available with PowerWizard 2.0 and 2.1 Control Panels. Please contact your local FG Wilson Dealer for further information.Note: PC or laptop is not included in any of the above options.

                                                                          Using Telephone Network
