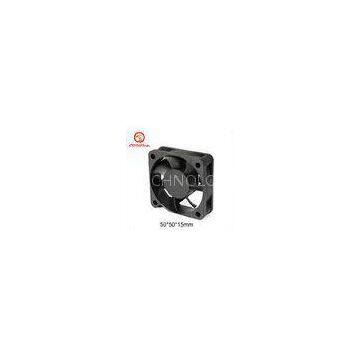

50*50*15mm DC Brushless Fan / Air purifier Cooling Fan / Inverter power Supply Cooling Fan
Quick Details
|
Type: |
DC AXIAL FAN |
Electric Current Type: |
DC |
Brand Name: |
CoolFlow |
|
Material: |
PBT plastic |
Place of Origin: |
Guangdong China |
Weight |
32g |
|
Model Number: |
DF05015 |
Voltage: |
5V,12V,24V |
Air Flow |
9.89～16.24CFM |
|
Size |
50*50*15mm |
Current(A): |
0.005～0.32A |
Noise Level(dBA): |
24～36dB(A) |
|
Speed: |
4000～6400RPM |
Bearing type: |
Sleeve/2ball/long life |
Certification: |
TUV,CE,ROHS |
Description:
1.Product Name:
DC fan,DC cooling fan,DC brushless fan,DC axial fan,computer fan,cpu fan,case fan,DC blower fan.
2. Life Expectancy:
Dual Ball Bearing: 70000 hours
Single Ball Bearing: 40000 hours
Long life Bearing: 35000 hours
Sleeve Bearing: 25000 hours
3. Standard environmental conditions
Unless otherwise specified,the reference environmental temperature and relative humidity are taken to be 20℃ and 65%.
If there is no provision in the judgment,the environmental temperature and relative humidity range are taken to be 15℃～35℃ and 25%～75%.
4. Operating temperature: -10°C～+70°C/65%(RH)
5. Storage temperature: -40°C～+70°C/65%(RH)
6. Normal temperature rise:
Temp;rise less than 25 °C at external surface.Temp;rise less than 55 °C at coiler surface.
7.Material:
Impeller & Frame: PBT Plastic(UL94V-0)
8.Lead Wire:
UL1061 AWG26# or Equivalent
Red wire: positive(+)
Black wire:Negative(-)
9. Insulation Resistance
Insulation resistance is more than 10MΩ when voltage between housing and both lead wires is 500VDC .
10.Withstand Voltage:
Must withstand 500VAC 1 second 1mA between housing and both lead wires.
11.Competitive Advantage:
11-1. We enjoy 10 years experience in manufacturing cooling fan
11-2. We have a comprehensive OEM service
11-3. We fully approved CE,SGS,UL,cUL,TUV certifications
11-4. We have advanced testing instrument and production equipment
11-5. We enjoy convenient access to major transportation networks.
11-6. We specialize in all kinds of Cooling Fans,such as AC/DC fans, CPU coolers,notebook coolers, VGA coolers, Hdd cooler and some accessories : Fan Gard ,Fan Filter and Thermal Grease.
Applications:
Suitable for computer, household appliances, projectors, toys, copiers and other equipment heat dissipation.
Specificatation:
