Certification:CE
High efficiency Wire Cutting and Stripping Machine , Automated Power Cord Stripping Machine
Brief introduction:
Patent No: ZL2013 2 0065237.9
Description: Stripping of exterior and interior wires can be completed once for all, applicable for wire stripping of two-core and three-core plugs,easy for operation.
Applicable cable:

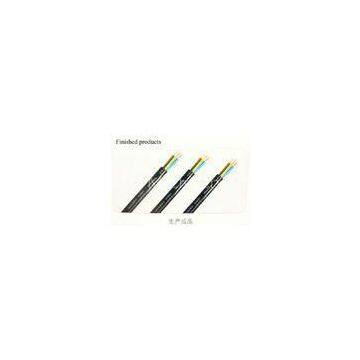

Two-core and three-core cables(Limited to cables with size smaller than 1.5mm²)
Parameter:
|
Model of machine |
SD-B68 |
Capacity |
2,000~2,400pcs/hour |
|
Stripping Size |
12mm~70mm |
Voltage |
AC220V/50Hz |
|
Dimension |
680mm*580mm*1100mm |
Weight |
100KG |
Additional information:
Place of Origin: Dongguan China
Brand Name: Senjia
Certification: CE
PLC control system
Foot switch control
Multiple working lane
Our Strong Point:
1). SENJIA has some world famous parts suppliers. Have high price performance ratio.
2). special lubrication system for the structure of machine.
3). body and other key components and parts are produced by our own factory , quality is reliable.
4). our company’s developing process in more than 10 years.
Products Show:How to use the stripping machine?
1, Get through pneumatic control system
2, Turn on the start work switch
3, Insert cable and then press foot switch
4, Continually Insert cable and press foot switch
5, Strip out jacket, bring the conductor to the same level, flatting and cutting, half-stripping, twisting(the final step twisting can be stop, if you don’t wanna twisting)
