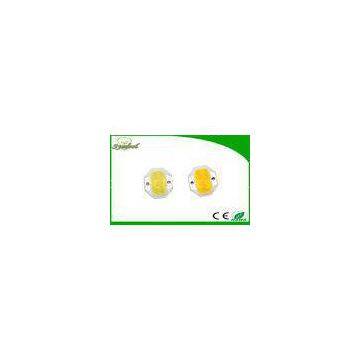

8 * 4.5mm Square Luminous Surface COB Led 3 - 15W With 120LM/w Epistar Chips
Quick Detail:
Luminous Intensity: 100 - 140lm/w Power: 3 - 15w Color Rendering Index(Ra): 80 Color Temperature: 2500K - 7000 working current: 300MA / 600MA working Voltage: 9-50V Viewing angle: 140 degrees Model No : XR-C5W5958W Type: Square Luminous Surface Luminous Surface : 8 * 4.5MMDescription:
Epistar or Bridgelux Chips Power: 3 - 15W Color Temperature: 2500K - 7000k The COB led have More than 50000 hours lifespan with 3 years warranty Luminous flux :100 - 140LM /w. Optical Attenuation(%): 1 Operating Temperature(℃): -30 - 60 Storage Temperature(℃): -10 - 40 It is widely used in led spotlight led bulb led down light and so on the COB led with 8 * 4.5MM Square Luminous Surface The Size :8MM OctagonApplications:
Epistar COB LED is widely used on indoor led lamps,like,led spot light,led ceiling light,led track light,led bulb and so on.
Specifications :
|
Item |
3 - 15W Epistar COB LED specification |
|
Commedity |
China supplier 3-15W Epistar COB LED factory direct sale |
|
Part No. |
XR-C5W5958W |
|
Color |
warm white, natural white, pure white,cool white, red, yellow, green, blue,orange,purple and other colors you want |
|
Chip brand |
Epistar ,taiwan |
|
Lumens |
100 - 140LM/W |
|
Power |
3 - 15watt |
|
Current |
600mA / 300MA |
|
Voltage |
9 - 50V |
|
CRI |
>75 >80 >85 |
|
CCT range |
2500-3200k (warm white) 4000-5000k (Natural white) 5000-6500k (Pure white) >7000k (Cool white) |
|
Working temperature |
-20 °C-+40 °C |
|
Super long lifetime |
50,000 H long lifetime |
|
Max Junction Temperature |
150°C |
|
Certification |
CE, Rohs |
|
Lowest thermal resistance |
8°C/W |
|
Warranty |
3 years |
|
Place of Orign |
Shenzhen Guangdong China |
|
Feature |
Anti UV |
|
Technical |
Silicone PC molding |
Competitive advantages:
1. LED with high brightness and high CRI, reach to 50,000 hours life span.
2. High energy saving, 90% energy than the incandescent lamp.
3. Green environmental protection, No UV or IR interference, no carbon dioxide emission.
4. We produce lamp beads, could provide high cost performance products
