0.22N.A. Fiber Bundled 808nm Diode Laser Module High Power 10W

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	BWT		Place of Origin	China
Model Number	K808F02MA-15.00W

Delivery Time:4-8weeks
Certification:ISO9001

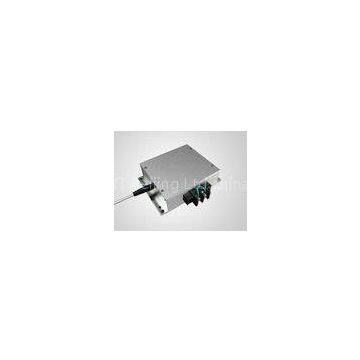

High Power 0.22N.A Fiber Bundled 808nm 10W Diode Laser Module K808F02MA-15.00W

Features:

Output power 10W, 15W 375µm fiber bundle diameter 0.22N.A. Wavelength 808nm 650nm aiming beam (optional)

Applications:

Laser pumping Illumination Medical use Material processing

Specifications(25℃)	Symbol	Unit	K808F02MA-10.00W	K808F02MA-15.00W
Optical Data	CW-Output Power(1)	P0	W	10	15
Center Wavelength	λc	nm	808
Tolerance of λ	-	nm	±3, ±10
Temperature Drift of λ	-	nm/℃	~0.3
Fiber Data(2)	Fiber Core Diameter	Wc	µm	375
Numerical Aperture	N.A.	-	0.22
Fiber Connector	-	-	SMA-905
Electrical Data	Operating Current	Iop	A	2.6	3.0
Threshold Current	Ith	A	0.4
Conversion Efficiency	η	%	40
Slope Efficiency	ηD	W/A	4.7	6.6
Operating Voltage	Vop	V	~10.0	~14.0
Reverse Voltage	Vre	V	~10.0	~14.0
Others	Operating Temperature	Top	℃	10~30
Storage Temperature	Tst	℃	-20~+80
Expected Lifetime	MTTF	h	>10, 000
Dimensions (fiber and connector not included)	-	mm	123×80×25
Weight	-	g	~600

(1) All LDs inside are connected in ser
