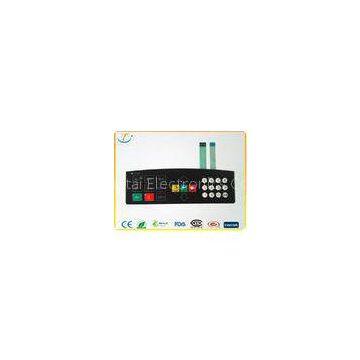

Printing Push Button Membrane Switch Keypad , Metal / Poly Dome Membrane Switches
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Graphic Membrane Switch Overlays / Panels , RoHS Membrane Labels With 6 Colors
-
SMD LED / LCD 3M468MP Rubber Keypad PCB Membrane Switch Panel , 100mA 10M Ohms
-
Dust - Proof Epoxy Keypad Membrane Switch 30V DC With Touch Panel , Pantone / RALcolor
-
Moisture Proof Touch Screen Flexible Membrane Switch For Instruments / Access control systems
-
3M467 3M468 Flat Flexible Membrane Switch For Household Appliances , 0.05 - 1.0mm Thickness
-
Dust Proof FPC Board Flexible Membrane Switch Keypad With Metal Dome , SGS Rohs
Product Details
| Brand Name | TianTai | Place of Origin | China | |
| Model Number | TT-MS-021 |
Product Description
Certification:ISO9001:2008, SGS,Rohs
Printing Push Button Membrane Switch Keypad , Metal / Poly Dome Membrane Switches
Description:
Silk screen printing or digital printing with perfect exterior Autotype PC or PET overlay Finish: glossy or matt. Rear Adhesive: 3M467 or 3M468 Matching color:Pantone and RALcolor matching system. SMD welding or by hand welding as per request metal dome or polydome, assemble with silicone keypad is also available. Withstand millions of cycles Standard Tolerances: 0.10inch(0.25mm) Push button membrane switch keypad
Applications:
Our membrane switches are widely used in :
Human Machine interface Automatic Control Equipment Telecommunications apparatus Telephone systems Household appliances Security systems Industrial controller Access control systems.....
Specifications:
|
wire lead resistance: |
＜1Ω/CM |
Life time: |
>1 Million times |
|
rated current: |
25-100mA,0～30V DC |
Operation Temperature: |
-40℃～70℃ |
|
Rated Voltage: |
＜50V, DC |
Operation Humidity: |
at 40℃,＜98%RH |
|
Insulation resistance: |
＜100MΩ,250V DC |
Dome springback time: |
＜5 msec |
|
Switch travel: |
Flat Type 0.05-0.3mm |
Base Material voltage withstand: |
1500 V DC |
|
tactile type:0.3-1.5mm |
Tail flexiblility: |
any angle within 180 degree |
1 material : PET /PC
2 adhesive: 3M467 & 3M468 or as per request
3 High life time :>1million times
4 Pass:ISO9001:2008 RoHS.SGS
5 High quality
Competitive Advantage:
1. Strong capability in R&D.
2. Professional staff in Production, management, and engineering, experienced in the industry for over 17 years.
3. Professional Sales team can provide quick service.
4 Low cost and top quality
5. Long lifespan,Our membrane switch is more than 100million times.
6. In-house 100% functionally tested before delivery.
7. Customized specification is available .
8. ISO9001:2008 certified company with three factories, Can provide one station resolution for client.
