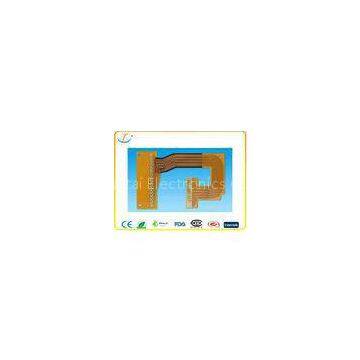

Single Layer Membrane Switch FPC Flexible Circuit Boards For Telephone Systems

Delivery Time:Around 9-12business days after payment.
Certification:ISO9001:2008 ,SGS,RoHs etc.

Single Layer Membrane Switch FPC Flexible Circuit Boards For Telephone Systems

Description:

FPC membrane switch:

 Double or single layer, multi-layer available  Substrate: Copper Film.  Matching color: Pantone and RALcolor matching system.  SMD welding with LED or other components.  Withstand millions of cycles  Good EMI characterestics  Light weigh, thin thickness, high precision.

Applications:

Our FPC membrane switches are widely used in :

 Human Machine interface  Automatic Control Equipment  Telecommunications apparatus  Telephone systems  Household appliances  Security systems   Industrial controller  Access control systems.....

wire lead resistance:	＜1Ω/CM	Life time:	>1 Million times
rated current:	25-100mA,0～30V DC	Operation Temperature:	-40℃～70℃
Rated Voltage:	＜50V, DC	Operation Humidity:	at40℃,＜98%RH
Insulation resistance:	＜100MΩ,250V DC	Dome springback time:	＜5 msec
Switch travel:	Flat Type 0.05-0.3mm	Base Material voltage withstand:	1500 V DC
tactile type:0.3-1.5mm	Tail flexiblility:	any angle within 180 degree

Specifications:

1 material : PET /PC
2 adhesive: 3M467 & 3M468  or as per request
3 High life time :>1million times
4 Pass:ISO9001:2008 RoHS.SGS
5 High quality

Competitive Advantage:

1. Strong capability in R&D.

2. Professional staff in Production, management, and engineering, experienced in the industry for over 12 years.

3. Professional Sales team can provide quick service.

4. Low cost and top quality

5. Long lifespan,Our membrane switch is more than 100million times.

6.  In-house 100% functionally tested before delivery.

7. Customized specification is available .

8.  ISO9001:2008 certified company with three factories, Can provide one station resolution for client.

9.  Quick delivery: mass production lead time is around 9- 12 days.
