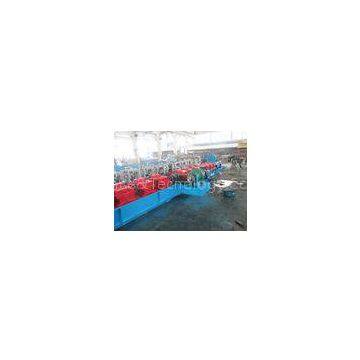

Hydraulic Guardrail Roll Forming Machine PLC Control Cold Roll Forming Equipment
Negotiable
/ Set
1 Set(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
-
45Kw Expressway Guardrail Roll Forming Machine Steel Wall Panel Roll Forming Equipment
-
Hydraulic Aluminum Tube / Pipe Forming Machine 90 Max Bend Angle
-
Full Auto 80 * 100 Sewer Pipe Roll Forming Machine With Manual Decoiler
-
Automatic Pipe Roll Forming Machine 0.3mm - 0.8mm Colored Steel Sheet
-
29-762 Wide Deck Panel Line Automatic Hydraulic Roof Panel
-
11Kw Roofing Roll Forming Machine Hydraulic Metal Sheet Forming Machine 0.27 - 0.8mm
Product Details
| Brand Name | HRF | Place of Origin | China | |
| Model Number | HRF170 |
Product Description
Certification:CE
U190 post Forming Machine Line
Description:
The components of the whole line is 5T hydraulic decoiler, roll forming Machine including 2 rolls feeding, 7 rolls leveling ,PLC cabinet, Hydraulic station, hydraulic cutting unit,2 simple runout tables We adopt Panasonic PLC control,Omron encoder measuring the length,Yaskawa speed variator made in Japan. It is easy and convient to operate the machine with stable performance and low noise We adopt 15kw motor on the main forming machine and 7.5kw motor on the hydraulic station.Rollers material is GCr15,heat treatment,HRC58-62.shaft material is 45# steel,fine processment We adopt heavy stands structure and H-beam machine frame,milled to gurantee the flatness and precision . We adopt 5T hydraulic decoiler and 5T manual decoiler as an optionApplications:
Expressway guardrail
Barrier rails
Guardrail beams
Specifications:
The profile
Drawing:
|
NO. |
Items |
Unit |
Main specification |
|
1 |
Material thickness |
mm |
3-3.0 |
|
2 |
Forming speed |
m/min |
12-15 |
|
3 |
Roll station |
/ |
14 stations(depend on the profile) |
|
4 |
Main power |
kw |
15 |
|
5 |
Hydraulic power |
kw |
7.5 |
|
6 |
Control system |
/ |
PLC panasonic/omron/simens/mitsubishi |
|
7 |
Drive |
/ |
Chain drive and gearbox with coupling |
|
8 |
Decoiler |
5T |
Manual decoiler Options:motorized/single-head hydraulic decoiler |
Competitive Advantage:
Good quality and reasonable price
