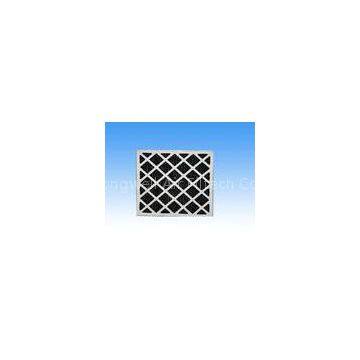

Help Center2014 Activated Carbon Pleated Filter, Activated Carbon Chipboard Pleated Filter
Related Products
-
Ring Filter / Air Filter Media/tackify Synthetic FilterUS$ 1 - 1MOQ: 1000 Sets -
G3-G4/EU3/EU4 Synthetic Fibre Prefilter Media by Blue White ColorUS$ 24 - 24MOQ: 10 Sets
-
2014 Hot Sales Nonwoven Filter Media for Prefilter in VentilationUS$ 0.8 - 0.8MOQ: 10000 Sets
-
Air Intake Filters and Air Exhaused Filter Media by G3-F5US$ 1.2 - 1.2MOQ: 1000 Pieces
-
2014 Honeycomb Carbon Cube, Acticated Carbon Filter CubeUS$ 13 - 13MOQ: 10 Sets
Quick Details
Condition: New
Efficiency: G4
Construction: Panel Filter
Filtration Grade: Pre Filter
Medium Material: Synthetic Fiber
Porosity: 0
framed: chipboard
backing: wire net
fire proof: 100%
Dimension(L*W*H): 24*24*2"
Weight: 3kg
Certification: ISO CE
Warranty: 360days
Advantages
Suitable for high humidity conditions
Replaceable filter media
Progressively built-up thermal bonded polyester fibre
Application: Prefiltration of dust and dirt on air handling units.
Type: Nonwoven Media, pleated with a wire support grid.
Frame: Mill-finished aluminium header.
Media: Polyester fibre.
EN 779:2002 filter class: G3.G4.
ASHRAE 52.2:2007 filter class: MERV 6. MERV 7.MERV11
Recommended final pressure drop: 250 Pa
Temperature:80.C-100.C Max.in continous service.
Fire rating: DIN 53438 class F1
SPECIFICATION:
CLASS | SIZE WXHXT(mm) | Air flow (m3/h) | Initial resistance (Pa) | Final resistance (Pa) |
G3 | 595 X 595 X 20 | 1900 | 35 | 180 |
G3 | 290 X 595 X 20 | 100 | 35 | 180 |
G3 | 595 X 595 X 46 | 3400 | 35 | 180 |
G3 | 290 X 595 X 46 | 1700 | 35 | 180 |
G4 | 595 X 595 X 25 | 1900 | 45 | 220 |
G4 | 290 X 595 X 25 | 1000 | 45 | 220 |
G4 | 595 X 595 X 46 | 3400 | 45 | 220 |
G4 | 290 X 595 X 46 | 1700 | 45 | 220 |
