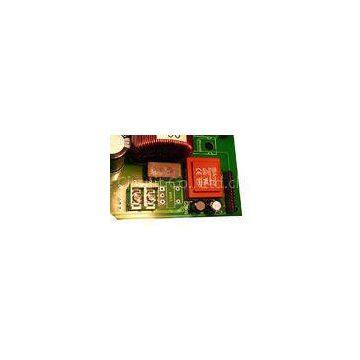

Single Layer Low Volume Prototype PCB Assembly with SMT Assembly Hand Soldering

Delivery Time:1 week - 2 weeks
Certification:ISO9001,UL, RoHs, TS16949

Single Layer Low Volume Prototype PCB Assembly with SMT Assembly Hand Soldering

Product Name:	Prototyping PCB Assembly	Material:	FR4
Assembly Type	Single Layer Assembly	Board Thickness:	1.6mm
Profiling Punching	Routering,V-Cut	Surface Finish:	Lead HASL, Leaded Assembly
Assembly	SMT Assembly, Hand soldering	Applications:	Linear motors and motion products

  Description:


Agile Circuit Co., Ltd has been as a professional PCB and PCB assembly manufacturer for about 10 years. We are growing with all effort of our staff and customers\' support. From the first built by several professional engineers to today with several co-partnership factories of our own, we witness the power of cooperation and win-win relationship.

  Specification:

Prototypes PCB manufacturing

Prototypes PCB manufacturing is common services we provide, either  prototypes PCB manufacturing or prototype PCB assembly. We have expert engineers check and test your layout to help you find out the problem of your PCB design and save time and money in your PCB prototypes manufacturing and asssembly, which is also important in your new production introduction (NPI). Below is our PCB prototyping fabrication spec. Our PCB products include:

Layer single Layer, double Layers, and multi Layers up to 26 Layers

Material FR-4, CEM-3, CEM-1,High TG, Aluminum clad, Copper clad

Thickness 0.20mm,0.6mm,0.8mm,1.0mm,1.2mm,1.6mm,2.0mm,2.4mm to 4.0mm

Copper 1/2oz, 1oz, 2oz ,3oz,4oz,5oz,6oz

Finishing HASL, Lead Free HASL, Immersion Gold, Immersion Silver/ Tin, OSP/Entek,

Sample order, Prototype, Small volume, Mass production PCB

Prototype PCB assembly:

We provide circuit board prototypes manufacturing the same with PCB assembly, from single sided SMT, THT to double sided mixed assembly, turn-key services for fully soldered and assembled prototypes to medium. We can order components for you as well we you provide the parts. The turn key service will enable you to handle bare PCB and PCB assembly together to one supplier. We can provide quick turn PCB prototypes manufacturing and assembly at aggressive turn-key pricing.

Surface Mount Technology 0603, 0402, BGA, UBGA

Conventional Leaded Technology, CEM Staff with Sufficient Experience for Hand Assembly, High Standard Workmanship

Use High Melting Point Solders, Intrusive Reflow and Potting RoHS / Non-RoHS

Cleared PCB assembly Selective Wave Soldering, Lead-free equipment and Process Control

Binocular Microscopes Inspection, X-ray, AOL, Functional test

Conformal Coating

DFM Support, Engineering Support

Applications:

Main Control Panel, Monitor, CCTV products, Weather Radar and Weather related Telemetry, Access Control Products, Oscilloscopes, Network Analyzers, Ohm Meters,Temperature meters, Strain Gauges, Environmental Chambers and Ovens, Spectrum Analyzers, Power supply, Industry robot, Solar Photovoltaic Power Cogeneration Equipment, DC to AC Power Inverters, Switcher Power Supplies, CCD Telescopes,Radars, Military Communications, Naval Systems, Electronic Warfare,Systems, IFF transponders, IR detectors, Night Vision Goggles, Military grade Computers with encryption, Fire Control circuits, Satellite Navigation instrumentation, Encrypted Frequency Hopping VHF Radios, Direction Finding Equipment, Missile Guidance Systems, FLIR Pod Test equipment ect.

Why us?


PCB Turnkey service provider, electronic circuit manufacturing, components sourcing, assembly in one station to save your time
