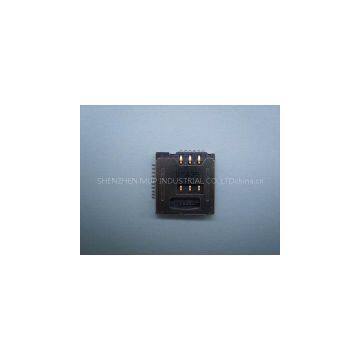

SIM+TF Card Connector

1.SIM+TF card connector
2.SMT type(SIM 6pin+TF 8pin)
3 Push type
4.RoHs compliant
5.Used:Mobile, USB card reader

SIM+TF card connector

1)SIM 6 Pin  TF 8pin

2) SMT Type (SIM 6Pin+TF 8pin)

3)DIM 17.40L*16.50W*2.70Hmm

Technical characteristics

1.General characteristics

   Dimensions: 17.40L*16.50W*2.70H mm

   Weight:Approx: 1.20±0.2g

   Contact principle: Friction technology

   Operating position: shaft up/down/horizontal

   Mounting system: SMT(without post)

   Durability: 5000 cycles min

2.Mechanical characteristics

   Insulation material: Thermoplastic,UL 94V-0

3.Electrical characteristics

   Number of contact: 8pin SIM+8Pin TF

   Contact resistance: 50MΩ typical,100MΩ max

   Insulation resistance: >1000 MΩ/500V DC

4.Solderability

   Wave: not applicable

   Vaporphase: 215oC,30sec Max

   IR reflow: 260oC,10sec Max

   Manual soldering: 360oC,3sec Max

5.Environmental characteristics

  Operating temperature: -25oC − +70oC

  Operating humidity: 10% − +95%RH

  temperature: -40oC − +85oC

  Storage humidity: 10% − +95%RH

  Thermal shock: -40oC+85oC,5cycles

  Damp Heat: 40oC,90%RH,500H

  Salt-mist: 35oC,5%Nacl,48H
