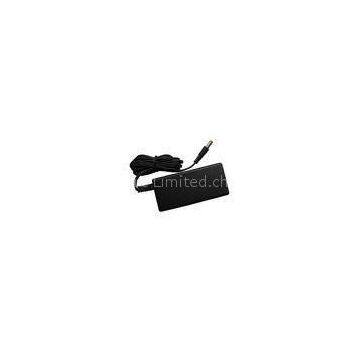

12V 1A Desktop DC Power Adapter For LCD Liquid Crystal Display , High Reliability
- T/T L/C D/P D/A
- 7 days
You May Like
-
24V 2A Desktop Power Supply Adapter For Display Device , High Efficiency 48W
-
12Vdc LCD TV Power Adapter 1.5A , Universal Desktop Power Adaptor EN 55022B
-
48Vdc Security Camera Power Adapter With US UK EU AU Plug , CE FCC UL Certificate
-
36Vdc 1.5A Desktop Power Adapter For Bank Data Equipment , C-TICK FCC Approved
-
Notebook Desktop Power Adapter 90VAC - 264VAC , Over Current , Short Circuit Protection
-
Plastic Case Desktop Power Adapter 7V 3.0A 21W , Meet Energy Star Level V
Product Details
| Brand Name | Panfore | Place of Origin | China | |
| Model Number | P120D3000 |
Product Description
Certification:CE,ROHS, FCC,CB,UL,C-TICK
12V 1A Desktop DC Power Adapter For LCD Liquid Crystal Display , High Reliability
Feature:
. Full Range Input
. Protections : Over Voltage , Overload , Short Circuit
. High Reliability
. 2 years warranty
Description:
|
Electronics Specification : |
|
|
Input Voltage Range: |
90~264Vac |
|
AC current: |
1.0A |
|
Frequency: |
50/60Hz |
|
Output Voltage: |
12.0Vdc |
|
Output Voltage Range : |
11.40Vdc to 12.60Vdc |
|
Maximum Output Current : |
3.0A |
|
Line regulation: |
±1% |
|
Load regulation: |
±5% |
|
Over current protection: |
Hiccup mode, Auto recovery |
|
Over voltage protection: |
Power shutdown, Auto recover |
|
Environment : |
|
|
Working Temp.: |
0~40℃ |
|
Working Humidity: |
20%~90% RH non-condensing |
|
Storage Temp. & Humidity: |
-20℃~85℃, 10%~95% RH |
|
Reliability : |
|
|
Hi-Pot Testing Voltage : |
I/P to O/P : 3.0 (60Sec.) KVac |
|
Safety Standard : |
EN60950 |
|
EMI Standard : |
EN55022B |
|
Safety Approval : |
|
|
Certificate |
UL, CE, FCC, C-TICK,CB |
|
Mechanical Characteristics |
|
|
Size: |
(L)97*(W)45*(H)28mm |
|
AC connector |
IEC8/IEC14 |
|
DC Cable: |
1.5M |
|
DC connector: |
5.5*2.1*12mm, other type connector avaible |
Applications:
widely used in household appliances, IT digital products, medical equipments, communication equipments, instrumentations, bank data equipment, computer peripheral products, security monitoring system, industrial and light field equipment and other products.
