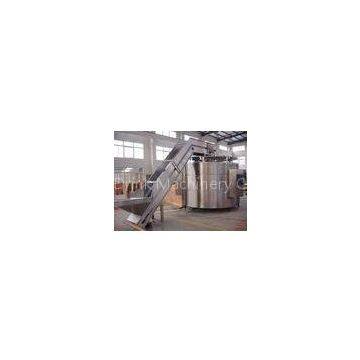

High Speed 8000BPH PET Bottle Unscrambler / Bottle Arranging Machine With 16 Working Positions

High Speed 8000BPH PET Bottle Unscrambler / Bottle Arranging Machine with 16 Working Positions

Quick Detail:

Description:

Instruction of the Pet Bottle Unscrambler:

This pet bottle unscrambler is suitable for unscrambling disorder polyester bottles, make them order and in one line, then discharge them by vaccum conveyor.

 The pet bottle unscrambler has the features: PLC program controlling; digit speed; automatic high speed operation, easy to combine with all kinds of filler or filling production line.

Features of the Pet Bottle Unscrambler:

1) Torque limit part is designed for the main motor reducer so as to protect the machinery if malfunctions occur.

2) Two put-casts in one cycle ensure that every work location should be with one bottle, which enhances bottle output efficiency.

3) The bottles are neck locked through the air conveyor so as to avoid overturn in delivery.

4) Dilapidated bottles will be eliminated by a special device.

5) A lock detector is equipped for alarming; when locked, the machine will automatically stop.

6) A photoelectric switch is set for starting when there is no bottle and stopping when there are bottles.

7) An oil pump will readily fill up the gears, bearings and the cams

8) Maintenance doors and mould replacement door provided.

9) Mitsubishi, Omron and Simons provide the main electrical components; Such as transducers, PLC, photoelectric switch and relays.

10) Machine outer tank,revolving tank and meet the bottle part are all stainless steel AISI304. Frame part adopts high-grade carbon jointing.

Applications:

This LP Series Pet Bottle Unscrambler is suitable for unscrambling polyester bottles and making them in one line, then discharge them by vacuum conveyor. Its features are as followed: PLC program controlling; digit show speed; Full-automatic; High speed operation; Easy to combine with all kinds of filler or filling production line.

Specifications:

Main Technical Specifications of the Pet Bottle Unscrambler
