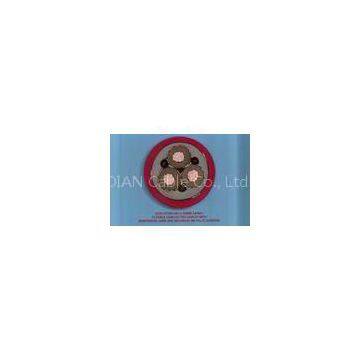

High Voltage 33KV Electrical Insulated and PVC Sheathed Xlpe Power Cable for Laying Indoor
- T/T L/C D/P D/A
- 7 days
You May Like
-
Aluminum Coppe Conductor, PE PVC Sheathed Electrical Low-voltage Power Cable for Tunnel
-
1kv 2kv 3kv 5kv 6kv 10kv Insulated Water Proof PVC Sheathed Middle Voltage Power Cable
-
GB IEC Standard 6 - 35kv Middle / Middle Voltage Power Cable CE, ISO, CCC Passed
-
35kv Copper Conductor / Aluminium Conductor XLPE PVC Insulated Middle Voltage Power Cable
-
Igh Voltage Waterproof Sheathed Underground Power Cable 64 / 110KV 240mm2 ~ 1200mm2
-
Copper XLPE High Voltage Power Cable and PE or PVC Cable 500KV / * 800mm2 1 * 3000mm2
Product Details
| Brand Name | ZHONGDIAN | Place of Origin | China | |
| Model Number | ZHONGDIAN |
Product Description
Certification:ISO 9001:2008, TLC, CCC
high voltage 35KV electrical xlpe insulated and PVC sheathed power cable for laying indoor
High Voltage 35KV Electrical Insulated and PVC Sheathed Xlpe Power Cable for Laying Indoor
XLPE Insulated Electrical Cable For Rated Voltage 3.6/6KV~26/35KV
For XLPE insulated power cable, either chemical method or physical method is employed to transform the molecular structure of PE from chain into three-dimensional network, i.e. thermoplastic PE is transformed into thermosetting XLPE. After cross-linking, the thermal and mechanical properties of PE have been greatly improved while its excellent electrical property are still retained.
The maximum permissible operating temperature of the conductor of a XLPE insulated power cable is 90 which resistance is higher than that of PVC or PE insulated power cable. The cable has the advantage of simplicity in construction, lightness in weight, convenience in application besides its excellent electrical, thermal, mechanical and anti-chemical corrosion properties. It can also be laid with no limitation of level difference along the route.
Product standardThe product is manufactured according to the standard of GB/T12706-2002 “Extruded solid dielectric power cables for rated voltages from l KV (Um=1.2KV) to 35KV (Um=40.5KV)”or IEC, BS, DIN and ICEA upon request.
ApplicationsThe product is suitable for use in power transmission and distribution lines with rated power frequency voltage 3.6KV/6KV~26/35KV.
Type of cable|
Type |
Designation |
Application |
|
YJV |
Copper conductor, XLPE insulated and PVC sheathed power cable. |
For laying indoors, in tunnel or cable trench, unable to bear external mechanical forces, Single core cable in magnetic duct is not permissible. |
|
YJLV |
Aluminum conductor, XLPE insulated and PVC sheathed power cable. |
|
|
YJY |
Copper conductor, XLPE insulated and PE sheathed power cable. |
|
|
YJLY |
Aluminum conductor, XLPE insulated and PE sheathed power cable. |
|
|
YJV22 |
Copper conductor, XLPE insulated, steel tape armored and PVC sheathed power cable. |
For laying indoors, in tunnel, cable trench, or direct in ground, able to bear external mechanical forces, but unable to bear large pulling force. |
|
YJLV22 |
Aluminum conductor, XLPE insulated, steel tape armored and PVC sheathed power cable. |
|
|
YJV23 |
Copper conductor, XLPE insulated, steel tape armored and PE sheathed power cable. |
For laying indoors, in tunnel, cable trench, or direct in ground, able to bear external mechanical forces, but unable to bear large pulling force |
|
YJLV23 |
Aluminum conductor, XLPE insulated, steel tape armored and PE sheathed power cable. |
|
|
YJV32 |
Copper conductor, XLPE insulated, steel wire armored and PVC sheathed power cable. |
For laying indoors, in tunnel, cable trench, well or direct in ground, able to bear external mechanical forces and certain pulling force. |
|
YJLV32 |
Aluminum conductor, XLPE insulated, steel wire armored and PVC sheathed power cable. |
|
|
YJV33 |
Copper conductor, XLPE insulated, steel wire armored and PE sheathed power cable. |
|
|
YJLV33 |
Aluminum conductor, XLPE insulated, steel wire armored and PE sheathed power cable. |
