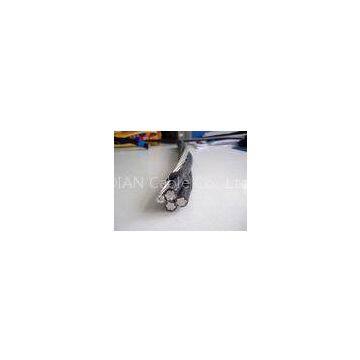

ABC OVERHEAD Electric Round Aluminum Rod ACSR Single Wire and Bared Wire
- T/T L/C D/P D/A
- 7 days
You May Like
-
XLPE Insulated DC Power Cable For Rated Voltage Up To And Including 3KV
-
Silicone Rubber Insulated High Voltage Wiring Cord, Tinned Copper Conductor
-
Cu Core Fire-proof & Insulation Layer Heat-resistance Wire, Fire-proof Cable
-
Heat-resistance Wire Cu Core Insulation Layer Steel Tape Armored Fire-proof Cable
-
Fire-proof Cable Cu Core Fire-proof & Insulation Layer Steel Wire Armored Heat-resistance
-
Cu Core Fire-proof & Insulation Layer Heat-resistance Wire Shield Fire-proof Cable
Product Details
Brand Name | ZHONGDIAN | Place of Origin | China | |
Model Number | ZHONGDIAN |
Product Description
Certification:ISO 9001:2008, TLC, CCC
Electric Round Aluminum Rod ACSR Single Wire and Bared Wire
■ Product standard: GB/T3954-2001
According to the requirement of wide customer our company can produce aluminum
single wire and bared wire, etc
with any specification.
■ Type, status and specification
Type |
Status |
Diameter mm |
A2 A4 A6 A8 |
H112 |
9.5±0.5 |
Mechanical and electric property of aluminum rod
Type |
MPa Tensile resistance |
% Rate of elongation≥ |
20℃nΩ·m D.C. resistance≤ |
A2 |
80~110 |
12 |
27.85 |
A4 |
95~115 |
10 |
28.01 |
A6 |
110~130 |
8 |
28.01 |
A8 |
120~150 |
6 |
28.01 |
■ Diameter deviation
Diameter deviation of electric round aluminum rod and the elasticity should be
in conformity with the regulations in following list:
Diameter |
Error |
Elasticity not more than |
9.0~12.0 |
±0.5 |
0.9 |
13.5~20.0 |
±0.7 |
1.2 |
Note: The elasticity is the difference between Max diameter and Min diameter measured at same cross section while aluminum rod is perpendicular to axial line.
■ Surface quality
1. Electric round aluminum rod should be round and the size should be uniform.
2. The surface of electric round aluminum rod should be clean, without defects such as wrinkle, stagger round, crack, impurity, kink, etc as well as other defect that is harmful to application. The light mechanical scratch, spot, pit, peeling or black spot, etc are permitted.
■ Delivery weight
1. Electric round aluminum rod should be delivered by reel. Each reel will be over 1000kg.
2. According to the agreement signed by both parties, electric round aluminum rod with any weight can be delivered.
