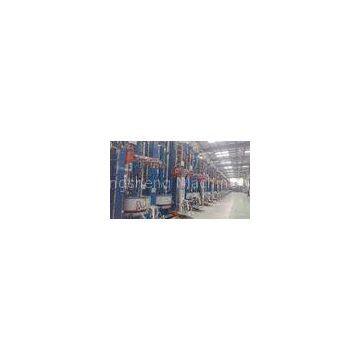

Hydraulic Flat Curing Press Dual Mode Vulcanizer For Steel Belted Tire

FOB Price

Negotiable / Square Meter

1 Square Meter(Min.Order)

Supply Ability 0 Square Meter / Square Meters per Month
Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	ROSNM		Place of Origin	China
Model Number	48 model

Product Description

Delivery Time:60days
Certification:ISO9001

Hydraulic Flat Curing Press Dual Mode Vulcanizer For Steel Belted Tire

Quick Detail:

Name	Tire Curing Press	Brand Name	ROSNM
Color	As your request	Feature	B (B Center) ,B (hot plate), C (open die vertical lifting) ,4B (4 station after inflating device),Pressure mould locking force,Host structure frame
Warranty	1 year	Place of Origin	CHANGZHOU
control	PLC	Certificate	ISO9001

Description:

> Technical parameter:51〞hydraulic vulcanizer

> PRODUCT IDENTIFICATION NUMBER:LLY1330BBC4B

> Max Mould Closing Force:1850KN

> Hydraulic Pressure:21Mpa

> Dia. of Platen:Φ1300mm

> Bead Range:14\"-20\"

> Maximum setting steam pressure:(Decided by user)

> Maximum inner pressure nitrogen of vulcanization: 2.4 MPa

> Maximum external pressure of steam: 1.4MPa

> Maximum inner pressure of steam: 1.6MPa

> Main power source: 3φ,380V,50Hz

> Control power source: 220V,50Hz or 24DC

> Type of main drive : Vertical lifting type

> Type of tire manufactured: Steel-belted tire

Applications:

Used for vulcanization of steel-belted tire

Specifications

Model	LLY1330BBC4B
Tire parameters Diameter scope of tire	14″－ 20″
O.D. of vulcanized green tire	560mm－950 mm
Height of vulcanized green tire	300mm－500 mm
O.D. of vulcanized tire	600mm－950 mm
Height of vulcanized tire	155mm－360 mm
Maximum setting steam pressure	(Decided by user)
Air cylinder	Japan SMC Germany FESTO
Solenoid valve	Japan SMC Germany FESTO
Maximum inner pressure nitrogen of vulcanization	2.4MPa
Type of tire manufactured	Steel-belted tire
Mold-opening/closing time	≤25 sec
Circle	≤80 sec
Adjustment of chuck gap	Manually/automatically
Three pneumatic components (air pressure regulator, air filter and atomized lubricator)	SMC
Nitrogen balance valve	USA HONEYWELL
Rotary connector	Japan ROCKY /Korea VALAS
Maximum mold clamping force	2000 KN
Hydraulic pump	Japan YUKEN Germany REXROTH USA VIKERS
