Galvanized Welded Wire Mesh, Wire Mesh

Electro galvanized Welded Wire mesh, Welded wire mesh, galvanised welded wire mesh, PVC coated Welded wire mesh, Iron Wire, PVC

Welded wire mesh is made of high-quality iron wire through automatic process and sophisticated welding technique, laid horizonta

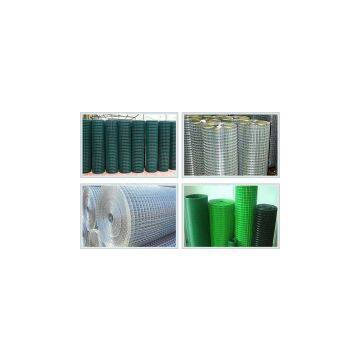

Varieties Available: Galvanized after weaving, galvanized before weaving, hot-dipped galvanized, PVC coated

Specification

Specification Welded Wire Mesh

Opening

Wire Diameter BWG

In inch

In metric unit(mm)

1/4" x 1/4"

6.4mm x 6.4mm

22, 23, 24

3/8" x 3/8"

10.6mm x 10.6mm

19, 20, 21, 22

1/2" x 1/2"

12.7mm x 12.7mm

16, 17, 18, 19, 20, 21, 22, 23

5/8" x 5/8"

16mm x 16mm

18, 19, 20, 21,

3/4" x 3/4"

19.1mm x 19.1mm

16, 17, 18, 19, 20, 21

1" x 1/2"

25.4mm x 12.7mm

16, 17, 18, 19, 20, 21

1-1/2" x 1-1/2"

38mm x 38mm

14, 15, 16, 17, 18, 19

1" x 2"

25.4mm x 50.8mm

14, 15, 16

2" x 2"

50.8mm x 50.8mm

12, 13, 14, 15, 16

Note: General roll width of welded mesh: 3', 4', 5', 6'. Length of welded wire mesh: 100'. P. V. C. Coating: 0.4mm-0.6mm. Special sizes available at request
