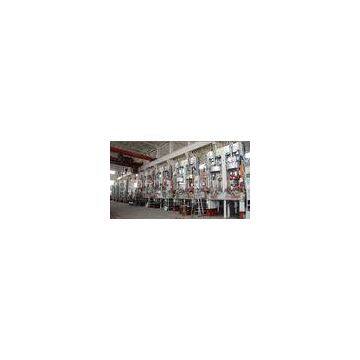

High Closing Force Tire Curing Pressing Machine , Hydraulic Vulcanizing Press

Name: High Closing Force Tire Curing Pressing Machine , Hydraulic Vulcanizing Press
Brand: ROSNM
SKU: 149035378
Availability: InStock

Zhejiang Rongsheng Machinery Co.

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Brand Name:

ROSNM

Place of Origin:

China

Model Number:

48 model

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

7 days

Brand Name ROSNM

Place of Origin China

Model Number 48 model

Delivery Time:60days
Certification:ISO9001

High Closing Force Tire Curing Pressing Machine , Hydraulic Vulcanizing Press

Quick Detail:

Name	Tire Curing Press	Brand Name	ROSNM
Color	As your request	Feature	B (B Center) ,B (hot plate), C (open die vertical lifting) ,4B (4 station after inflating device),Pressure mould locking force,Host structure frame
Dimension(LWH):	5.1M6.9M6.8M	Weight	23T
Warranty	1 year	Place of Origin	CHANGZHOU
control	PLC	Certificate	ISO9001

Description:

> Type of main drive : Vertical lifting type

> Type of tire manufactured: Steel-belted tire

> Mold-opening/closing time: ≤20 sec

> Circle: ≤70 sec

> Air control pressure: 0.7 MPa> Maximum setting steam pressure:(Decided by user)

> Maximum mold clamping force: 1800K> Maximum inner pressure nitrogen of vulcanization: 2.4 MPa

> Maximum external pressure of steam: 1.4MPa

> Maximum inner pressure of steam: 1.6MPa

> Main power source: 3φ,380V,50Hz

> Control power source: 220V,50Hz or 24DC

Applications:

Used for vulcanization of steel-belted tire

Specifications

Model	Frame hydraulic- drive type
Type of main drive	Steel-belted tire
PLC	ABB
Air control pressure	0.7 MPa
Mold number	2
Mold type	Segmental mold
O.D. of mold	≤1200 mm
Height of mold	250 mm－ 500mm
Diameter of hot plate	1200mm
Inner diameter of protective hood	1220 mm
Hydraulic station	Five pieces for one
Number of working positions	4 working positions
Position changing type	Turn 180°
Adjustment of chuck gap	Manually/automatically
Three pneumatic components (air pressure regulator, air filter and atomized lubricator)	SMC
Nitrogen balance valve	USA HONEYWELL
Rotary connector	Japan ROCKY /Korea VALAS
Hydraulic pump	Japan YUKEN Germany REXROTH USA VIKERS
