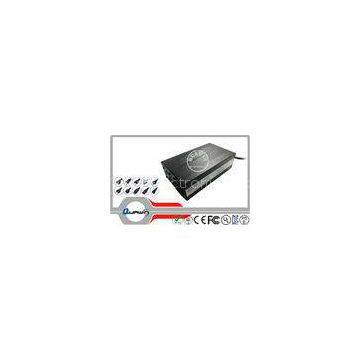

168w 24v 7A Nimh Nicd Portable Cigar Lighter Battery Pack Chargers

168w 24v 7A Nimh Nicd Portable Cigar Lighter Battery Pack Chargers

Quick Detail:

Brand Name:QUAWIN

Model Number:QW240-070-N

Use:16 Cells 19.2V NIMH NICD Battery Pack

Type:Electric

Place of Origin:Guangdong China (Mainland)

Battery charger:automatic battery charger 24V

Certificate:CE FCC UL SAA ROHS

Color:Black

Input voltage:100-240VAC 50/60Hz
Input Current:Max 3A

Output voltage:24V

Output current:7A

Output power:168W

Charge mode:MCU control charging process to avoid over charge

Output Connector:DC Jack,Small crocodile clip,Cigar lighter,XRL,Ring terminal

Packaging & Delivery :

inner package: white box/polybags/at your request outer package:carton

Delivery Detail:sample within 5 work days,7~25 days for bulk order

Specifications:

 16 Cells 19.2V NIMH NICD Battery PACK

Features:

  • Charging mode:CC—CV(Constant Current—Constant Voltage)
  • High efficiency and low power consumption
  • Stabilized output and low noice
  • Power efficiency:80%(min.) at full load,110Vac or 230Vac 40Hz.
  • Operating temperature:-10C ~ 45C
  • Storage temperature:-20C ~ 70C
  • Operating humidity:5%~90%RH


Specification:

  • Input: AC 100-240V 50-60Hz 1.0A

  • Output: DC 24V

  • Charging current: 7A

  • Model Dimension:160.0x105.0x70.0mm

  • Weight: 1800g(only body)


Safety protections:

  • Over Voltage protection

  • Short Circuit protection

  • Polarity error protection

  • Over power protection
  • Over temperature protection(Typical value:60 Centigrade)

The charger turn trickle-off charging mode if battery is full (1/10C), and indicate by LED:

  • Charging:RED,

  • Protection:RED Blinking

  • No battery or Charging finished(Trickle on):GREEN

  • Output short or battery poles wrong:RED Blinking


Call us to know more details datasheet.
