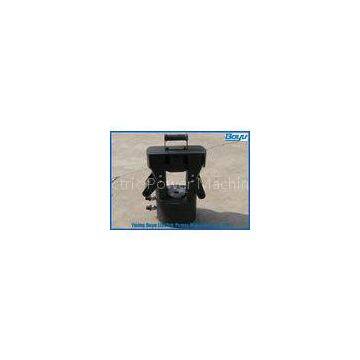

125 Ton Transmission Line Stringing Tools Hydraulic Compressors Dies Pumps for Overhead Conductor

For compressor, QY-35 work with hand pump or Single-tube electric pump; QY-65, QY-125, QY-200 work with hydraulic pump.

Model

Max compression force (kN)

Rated pressure (kN)

Conductor size (mm)

Max stroke (mm)

Weight (kg)

QY-35

350

70

≤240

25

12

QY-65

650

94

≤500

25

25

QY-125

1250

94

≤720

25

40

QY-200

2000

94

≤1440

25

85

For Die

Model

Compressor model

Aluminum Dies

Steel Dies

Copper Dies

QYD-35

QY-35

16/18/20/22/24/26/30/32/34/36

16~500mm2

QYD-65

QY-65

26/28/30/32/34/36/38/40/45/50

12/14/16/18/20/22/24/26

16~800mm2

QYD-125

QY-125

26/28/30/32/34/36/38/40/45/50
/52/55/60

12/14/16/18/20/22/24/26

16~800mm2

QYD-200

QY-200

26/28/30/32/34/36/38/40/45/50
/52/55/60/65/70/75/80

12/14/16/18/20/22/24/26
/28/30/32

16~800mm2

For Gasoline pump

Model

Max compression force

Rated pressure

Flow

Gasoline volume

Power

Weight

YB-100

100Mpa

80kN

1.6L/min

8L

4hp

83kg
