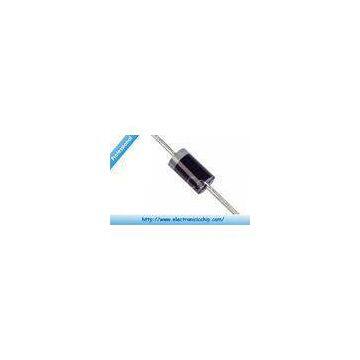

DIODE FAST SW 50V 1A DO204AL / Standard Diode 1N4933GP - E3 / 73
Quick Detail:
Description:
E-Chips Solution Co., LTD is a full-service, professional distributor of semiconductors, integrated circuits, electro-mechanical, computer peripherals, military and hard-to-find, obsolete and allocated products, servicing large-scale OEMs worldwide.
Applications:
All of the circuit board
Specifications:
| Datasheets | 1N4933GP thru 1N4937GP |
|---|---|
| Product Photos | DO-204AL, Axial (DO-41) Bidirectional |
| Standard Package | 3,000 |
| Category | Discrete Semiconductor Products |
| Family | Diodes, Rectifiers - Single |
| Series | SUPERECTIFIER® |
| Packaging | Tape & Box (TB) |
| Diode Type | Standard |
| Voltage - DC Reverse (Vr) (Max) | 50V |
| Current - Average Rectified (Io) | 1A |
| Voltage - Forward (Vf) (Max) @ If | 1.2V @ 1A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 200ns |
| Current - Reverse Leakage @ Vr | 5µA @ 50V |
| Capacitance @ Vr, F | 15pF @ 4V, 1MHz |
| Thermal Resistance | 55°C/W Ja |
| Mounting Type | Through Hole |
| Package / Case | DO-204AL, DO-41, Axial |
| Supplier Device Package | DO-204AL (DO-41) |
| Operating Temperature - Junction | -65°C ~ 175°C |
| Dynamic Catalog | Standard Diode |
| Other Names |
1N4933GP-E3/73-ND 1N4933GPE373 |
Competitive Advantage:
1. We can shipping all over the world by DHL , UPS , FedEx ,TNT, EMS and HK post. The packaging is very safe and strong. If you have any special needs please notice me.
2. It will take around 3-5 days to reach your hands.
3.Good price with good quality!
100% NEW AND ORIGINAL!
30-365 DAYS QUALITY WARRANTY!
