Certification:CE UL CSA

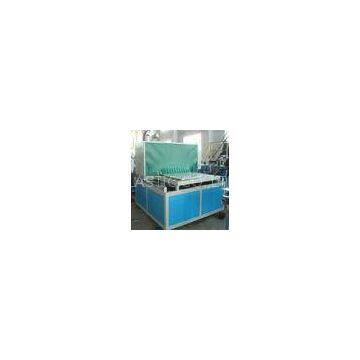

5-35mm Thickness PP PE Plastic Board Extrusion Line / Equipment
Quick detail :
Material:PP PE
Thickness:1-30mm
Screw design: single screw
Screw number : Sh120/30
Voltage :380v/50HZ
Motor power: 132KW
Board thickness: 5-35mm
Board width: 1220×2440mm
Weight: 7Ton
Warranty: 1 year
Description:
Process flow:
Single screw extruder→hydraulic filter→mould→three-
roller calender→cooling bracket→edge cutting device→haul-off→transversal cutter→stacker(three roller
cooling device,transmission device,length measuring device unit)
1, The screw is designed of special mixing function and high plasticization capacity.
2,The special designed T-type mold ensures a precise control to the thickness of the board.
3, The accurate temperature control (±1) can precisely control the plasticization process, thickness and
smoothness of board.
4,The three-roller calendar adopts horizontal, vertical or 45°tilt type installation, with up-down lifting mode.
5.The thickness of board is controlled by screw and pressing roller in two directions.
6.The separate roller temperature control system can precisely control the pressing roller temperature to
ensure a even thickness.
7.Cutting machine can cut the sheet with accurate length and quantity.
8.The winding device uses big torque motor, can freely regulate the winding speed and tension.
9.The automatic meter countering device can pre-set the length of the product.
Applications:
Chemical and foodstuff industries, electronic industry etc. Such as structural tanks and covers, tank
linings, plating barrels and tanks, vacuum forming all kinds of parts and trays, artificial limb etc.
Specifications:
Mode |
Single-layer PE sheet production line |
Multi-layer Pe sheet production line |
Extruder |
SJ-120/33 |
SJ-120/33,SJ65/33 |
Product width |
500-1800mm |
500-1800mm |
Product thickness |
1-30mm |
1-30mm |
Main motor power |
132kw |
132kw/45kw |
Extrusion capacity |
350kg/h |
400kg/h |
Competitive Advantage:
