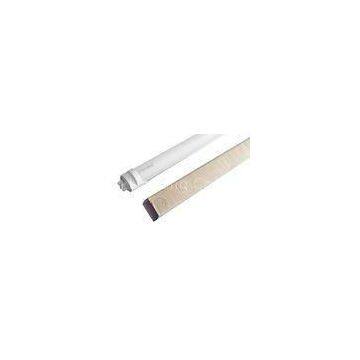

220V 22W 1540 ~ 2100Lm High Efficiency T8 LED Tube Lights for Factory Ra 70 4ft

Delivery Time:3~7 days
Certification:CE,C-tick, EMC, ETL, FCC, GS, LVD, PSE, RoHS, SAA,

220V 22W 1540 ~ 2100Lm High efficiency T8 LED Tube lights for factory Ra 70

Quick Detail:

Japanese led light tube 22w with PSE ETL SAA, CE ROHS 2ft 1200mm 22W 108D22-X10 T8 LED Tube Light Fixtures

Model Number: 108D22-X10 Item Type: 1.2m LED T8 tube Light Source: Epistar 3014SMD 10*30mil Lamp Body Material: Pure Aluminum Alloy+ PC cover (94-V0) Power: 22W  Input Voltage(V): AC 110~240V Light efficiency: 85-100lm/w Certification: CE,C-tick, EMC, ETL, FCC, GS, LVD, PSE, RoHS, SAA, Service: OEM label-print Warranty: 3years

Description:

Model Number: 108D22-X10 Item Type: 1.2m LED T8 tube light Light Source: Epistar 3014SMD 10*30mil Lamp Body Material: Pure Aluminum Alloy+ PC cover (fire-proof 94-V0, imported form Taiwan, you can choose frosted, transparent PC, the luminousness is ≥ 90%) Power: 22W  Input Voltage: 110~240V AC Light efficiency: 85-100lm/w Lamp Luminous Flux: 1540~2100Lm Lamp Luminous Efficiency(lm/w): 90 CRI (Ra>): 70 Color Temperature: Warm White(3000K±300K), Natural White(4000K±400K), Cold White(5700K±570K) Working Temperature: -20℃ - 40℃ Working Lifetime: 40000hrs IP Rating: IP33 Certification: CE,C-tick, EMC, ETL, FCC, GS, LVD, PSE, RoHS, SAA, Service: OEM label-print Warranty: 3years

Applications:

Widely used in the lighting of office, hospital, school, business area, airport, metro station, flyover, signboard, Gymnasium, landmark and so on.

Specifications:

Rated Voltage	100~240VAC / 50~60 Hz
Wattage	22W*
Power Factor	>0.85
Lumen	1540~2100Lm*
Efficiency	>75Lm/w*
Beam Angle	≥180°
Flux(Lux)@1M	＞350Lux*
Lifespan (hrs) @25℃	40,000hrs *
Ambient Temp. (℃)	-20℃~40℃
Storage Temp. (℃)	-40℃~65℃
Color Temp.	3000K±300K, 4000K±400K, 5700K±570K
CRI	＞70%
Key Material	Aluminum Alloy+ PC Cover
N.W.(g)	360g*
Warranty	3years

Item	Wattage	CCT	Flux@1m	Lumen	Efficiency	CRI
108D18-R10	22W	3000K±300K	350lux*	1540~1700lm*	>70Lm/w*	>80%
108D18-T10	22W	4000K±400K	390lux*	1760~1950lm*	>80Lm/w*	>70%
108D18-W10	22W	5700K±570K	410 lux*	1870~2100lm*	>85lm/w*	>70%

Size:

Length A

Length  B

Length  C
