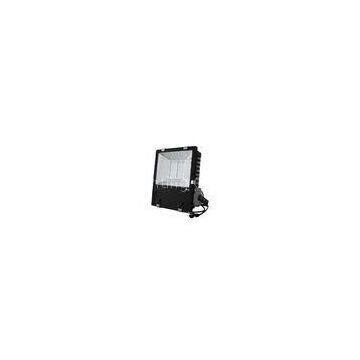

200W Industrial Waterproof LED Flood Lights / Floodlight With 3030 SMD Epistar LED Chip

Delivery Time:3~7days
Certification:CE/RoHS/C-tick/SAA

200W Industrial Waterproof LED Flood Lights / floodlight with 3030 SMD Epistar LED chips

Quick Detail:

Model Number: FLA-SC200W Item Type: Flood Lights Light Source: 3030SMD Epistar LED chip Lamp Body Material: Aluminum Alloy+ toughened glass+ ASA Industrial plastic+ Japan DENKA HITT PLATE or HITACHI Thermal Conductive PCB+ 0.8m H05RN-F rubber cable Power: 200W±5% Input Voltage: 100~240V AC / 50~60 Hz Lamp Luminous Efficiency: >80lm/w IP Rating: IP65 Certification: CE, RoHS, C-tick,, SAA Warranty: 3 years

Description:

Product: 200W led floodlight IP65 SMD Model Number: FLA-SC200W Lamp Body Material: high quality aluminum alloy+ ASA Industrial plastic+ durable toughened glass, the light transmittance is about 93%   Light Source: high brightness and stable 3030SMD Input Voltage: 100~240V AC / 50~60 Hz Power: 200W±5% Lamp Luminous Flux(lm): 15000lm±10% Lamp Luminous Efficiency(lm/w): >80lm/W CRI (Ra>): >75 Color Temperature: Warm White(3000K), Natural White(4000K), Cool White(5000K), Cold White(6000K) Beam Angle: >120° Working Temperature: -20℃~40℃ Storage Temp. : -40℃~65℃ Lifespan @25℃: 40,000hrs IP Rating: IP65 Certification: CE, RoHS, C-tick,, SAA Warranty: 3 years N.W.(g): 10000g

Applications:

Widely used in the lighting of government project, billboards, bridges, squares, stadiums, trees, building walls, metro station, flyover, park and so on.

Specifications:

Rated Voltage (VAC/Hz)	100~240VAC / 50~60 Hz
Wattage (W)	200W
Power Factor (PF)	>0.90
Lumen(Lm)	11000-15000lm
Beam Angle	>120°
Flux(Lux)@2M	1400Lux
Lifespan (hrs) @25°C	40,000hrs *
Ambient Temp. (°C)	-20°C~40°C
Storage Temp. (°C)	-40°C~65°C
N.W.(g)	10000g
Warranty	3years
IP Rating	IP65

Item B:SMD LED	CCT(K)	CRI(%)	Lumen(Lm)	Flux(Lux)@2M
FLA-SC200 floodlight Q80	2700K	＞80%	12000Lm	1250ux
FLA-SC200 floodlight T70	4000K	＞70%	13500Lm	1350lux
FLA-SC200 floodlight V70	5000K	＞70%	14000Lm	1400lux
FLA-SC200 floodlight W70	6000K	＞70%	15000Lm	1500lux

Dimension:

Length A	Length B	Length C	Length D	Length E	Length F
340mm	400mm	291mm	215mm	121mm	192mm
