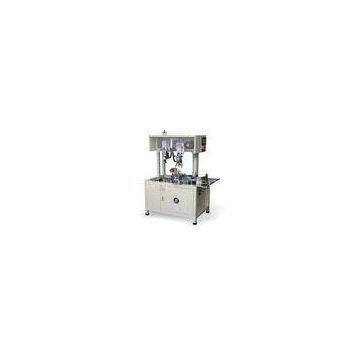

Fully Automatic Power Cord / Wire Coil Winding Machine for Cable Wire Binding
I. Description:
The automatic winding machine SD-168B newly developed by us is an automation product integrating
functions of wire winding and binding. Due to its simple mechanical structure, the workers could be
proficient in handling it after receiving a short-term training.
3. Quality Features:
The machine can tie and twist the cable automatic. The Head length, Tail length,Total winding length can
be adjussted. Easy to operated and labors are saved and improving output.
4. Specification:
Model: SD-168B
Power supply: AC220V/50HZ
Air pressure: 4.5-7.5KG
Volume: L1100*W665*H1545mm
Weight: 235KG
Parameter table of product:
| Model of machine | SD-168B(AC) | Winding speed | 1100-1300PCS/Hour |
| Total winding length | 120mm-220mm | Length of the wire | MAX.400mm |
| Normal Head length | 30mm-150mm | Normal Tail length | 80mm-450mm |
| Voltage | AC220V/50HZ | Length of cable tie | Can be adjusted |
| Pressure of air source | >4.5KG | Number of turns for tie | Can be adjusted |
| Dimension | 1300mm*660mm*1550mm | Weight | 235KG |
Parameter table of product:
| Model of machine | SD-168B(DC) | Winding speed | 1300-1700PCS/Hour |
| Total winding length | 60mm-120mm | Length of the wire | MAX.400mm |
| Normal Head length | 30mm-150mm | Normal Tail length | 30mm-350mm |
| Voltage | AC220V/50HZ | Length of cable tie | Can be adjusted |
| Pressure of air source | >4.5KG | Number of turns for tie | Can be adjusted |
| Dimension | 1100mm*660mm*1550mm | Weight | 235KG |
