IEC60529 IPX3 / IPX4 Ingress Protection Test Equipment Rain Oscillation Tube Tester

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 0 Set / Sets per Month
Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	HongTong		Place of Origin	China
Model Number	SSW-1

Product Description

Delivery Time:30 days
Certification:TUV、ITS、CSA、BV、SGS 、CNAS

IEC60529 IPX3/IPX4 Rain Oscillation Tube Tester , Waterproof Tester

Product information:

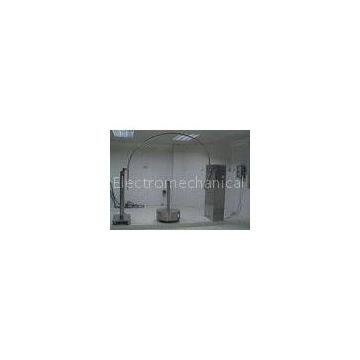

Oscillating tube tester is designed and manufactured in accordance with the standard requirement of IEC60529 IPX3 and IPX4. It is used for the waterproof test of the electrical equipment.
The oscillating tube part of this device is controlled by adjustable-speed motor and crank-link mechanism. This device is reciprocating swing from the place of ±60°to another one of ±175°with the speed required by the standard through machine adjusting angle.
The angle adjustment is accurate. The structure is stable and durable. It is equipped with rotating stage through which the rotating of 90°can be achieved. It is also equipped with clean water filtration unit to prevent the pinhole from jamming.

Technical parameters:

No.	Item	parameters
1	Power supply	Single phase AC220V,50Hz
2	Water supply	Water flow rate＞10L/min±5% clean water without inclusion. This device is equipped with clean water filtration unit
3	The size of the oscillating tube	R200 ,R400,R600,R800,R1000,R1200,R1400,R1600mm Optional,stainless steel
4	Water hole	Φ0.4mm
5	Included angle of two holes	IPX3:120°； IPX4:180°
6	pendulum angle	IPX3:120°(±60°)； IPX4:350°(±175°)
7	Raining speed	IPX3:4s/time(2×120°)； IPX4:12s/time(2×350°)；
8	Water flow	1-10L/min adjustable
9	Testing time	0.01S～99 hours 59mins,can be preset
10	The diameter of rotary plate	Φ600mm
11	Speed of rotary plate	1r/min,90°place limited
12	Load bearing of rotary plate	≤150㎏electrical equipment (without rotary column)； stand column≤50㎏
13	Pressure gauge	0~0.25MPa
14	Site requirements	Dedicated IP waterproof test room,The ground should be flat with illumination 10A waterproof leakage switch(or socket)used for equipment. With good function of inflow and drainage. Ground installation
15	The area	According to the oscillating tube chose
