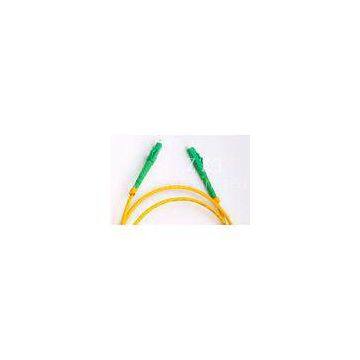

Draka Fibers LC Fiber Optic Network Patch Cord OS1 OS2 , Pathcord Assembly

Delivery Time:3-7days
Certification:ROHS,UL
Draka Fibers LC Fiber Optic Network Patch Cord OS1 OS2 , Pathcord Assembly

Quick Detail:

LC/UPC, LC/APC and LC/PC fiber optic master patch cords, in single mode 9/125 and multimode 50/125, 62.5/125: OS1, OS2, OM1, OM2, OM3,OM4 fibers are available, cable outer diameter can be 0.9mm, 1.6mm, 2.0mm, 2.4mm and 3.0mm, in SX, DX or Multi-core patch cords.


Description:

ZZT provide a full range of patch cords, such as SC, SC/APC, LC, LC/APC, FC, FC/APC, ST, MT-RJ, MU, E2000, E2000/APC, MPO, DIN etc for both Single mode and Multimode, SX ,DX and Multi-core, The monthly production capacity is 900k, all products are designed and controlled under IEC standard, meet the requirement of Telcordia GR-326 and TIA/EIA as well.


Material:

Ferrule: Zirconia
Fibers: Corning, Draka, YOFC
Jacket: PVC, LSZH, OFNR, OFNP
Cable: Tight buffer, easy stripping tight buffer, loose tube


Applications:

Telecommunication network
CATV system
Local Area Network
Active/Passive device
FTTH and FTTX


Competitive Advantage:

Telcordia GR-326, IEC, TIA/EIA Standard compliant
100% Optical performance inspection and end-face geometric
Low Insertion Loss and high Return Loss
Varieties of Cable Assemblies
RoHS Compliance


Specifications:

	SM	MM
9/125	50/125	62.5/125	OM3 OM4
UPC	APC	PC
Insertion loss	≤0.1dB	≤0.1dB
Return loss	≥60dB	≥65dB	≥35dB
Durability	1000 times, ≤0.2dB	1000 times, ≤0.3dB
Working Tem.	-40 to +80℃
Storage Tem.	-40 to +80℃
Endface Geometry
Parameter	2.5μmm Ferrule	1.25μmm Ferrule
UPC	APC	UPC	APC
Radius of Curvature	10～25mm	5～12mm	7～25mm	5～12mm
Apex Offset	0～50μm	0～50μm	0～50μm	0～50μm
Fiber Height	-100～50nm	-100～100nm	-100～50nm	-100～100nm
Angle		7.7-8.3degree		7.7-8.3degree
3D Geometry

Environmental and Mechanism

Mechanical Properties	Test condition	Conformance	Test result
Vibration	10-55Hz,1.5mm
